NEXTION 2.4" 2.8" 3.5" Resistive Touch Display
NEXTION 2.4" 2.8" 3.5" Resistive Touch Display
The NEXTION HMI Touch Display combines a touchscreen, processor, and graphical interface engine into a single module, significantly reducing the workload on the main microcontroller.
Key Features:
- Integrated processor and memory
- Resistive touch panel
- Serial UART communication
- WYSIWYG graphical design software
- Multiple screen size options
- Simplified user interface development

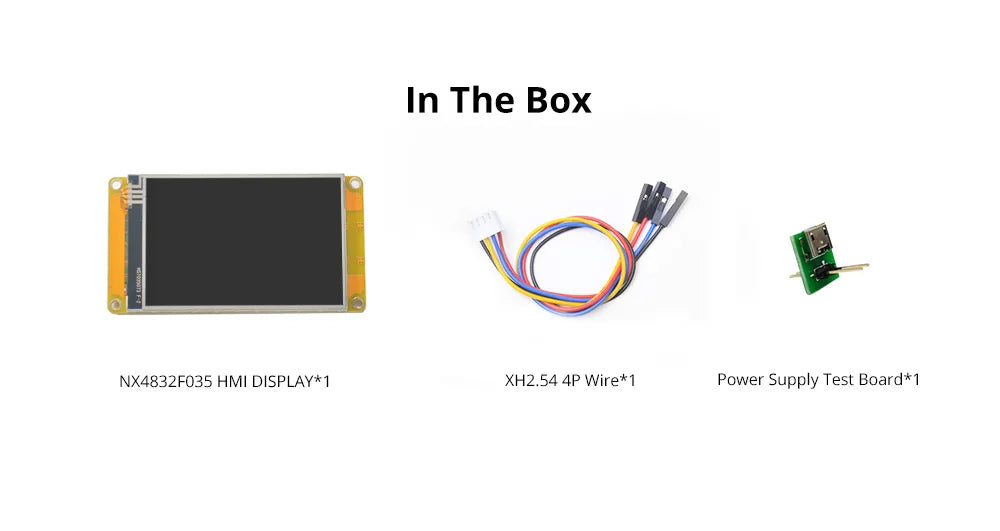

What's in the Box:
- 1x NEXTION HMI Display
Best suited for: Industrial control panels, smart home dashboards, 3D printer interfaces, and advanced embedded GUI projects.
NEXTION 2.4” 2.8” 3.5” Discovery Series HMI Resistive Touch Display Module Free Simulator Debug Support Assignment Operator
The Nextion Discovery Series MCU clock speed is 64 MHz which is more powerful than the Basic Series. There are 2.4”, 2.8“, 3.5” HMI display size options for your choice.
Comparing with Basic Series, the Discovery Series has a better MCU performance, with the new image compression technique, the Discovery Series allows more pictures in the same amount of flash compared to Basic and Enhanced models.

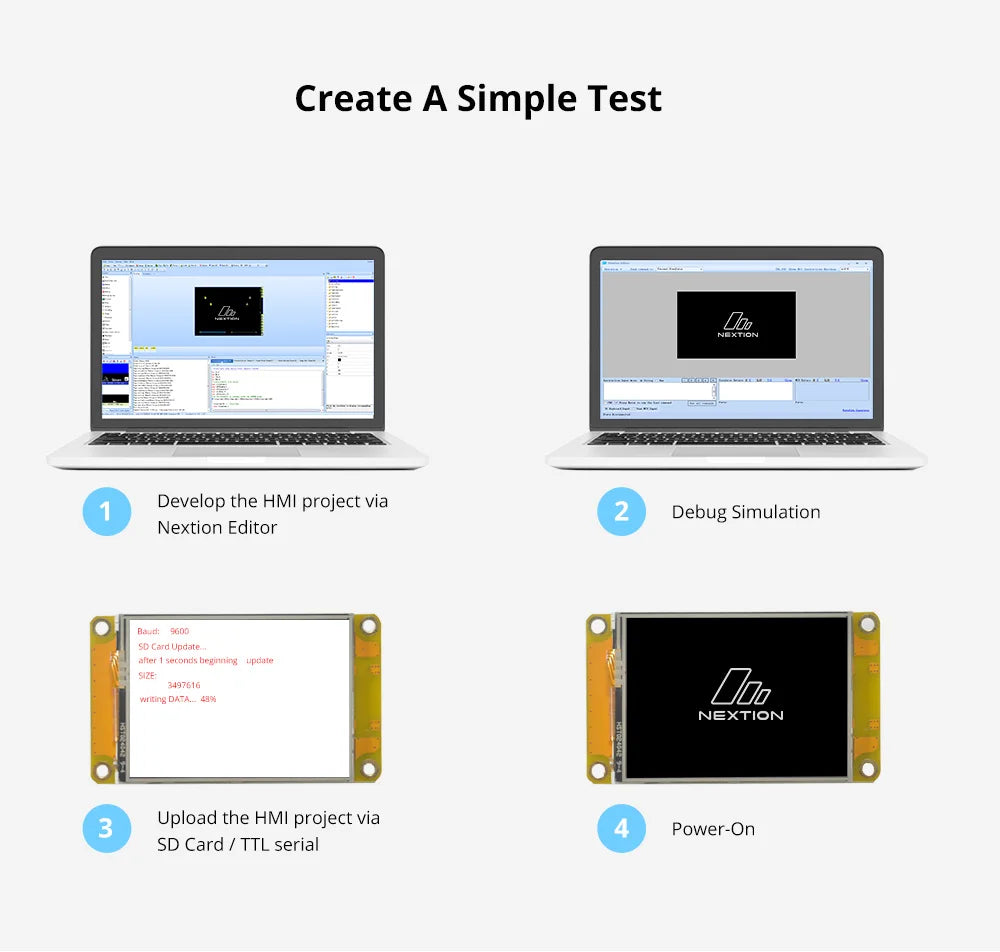

You can develop the HMI GUI project via the free Nextion Editor software, the easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads.
The Nextion solution is the best balance HMI solution between cost and benefit with a low and decreased learning curve.
NOTE: There is a protective film over the screen. If you receive the product and find there are scratches on the screen, don't worry. It's the protective film, not the screen itself.

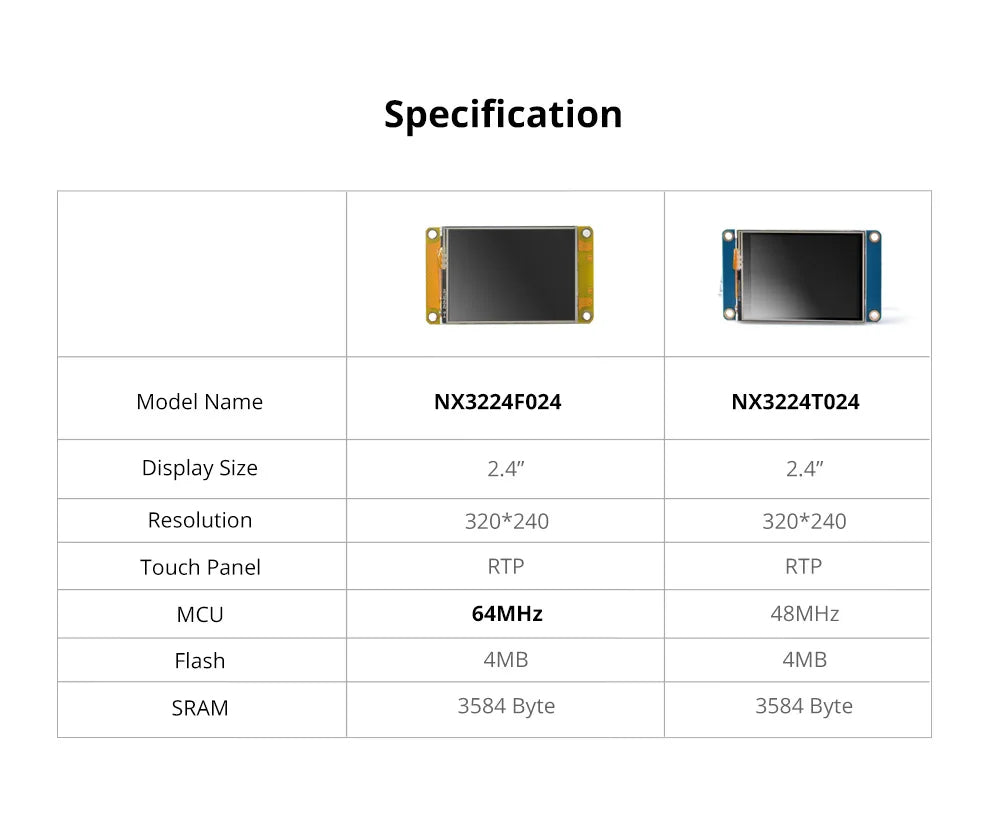

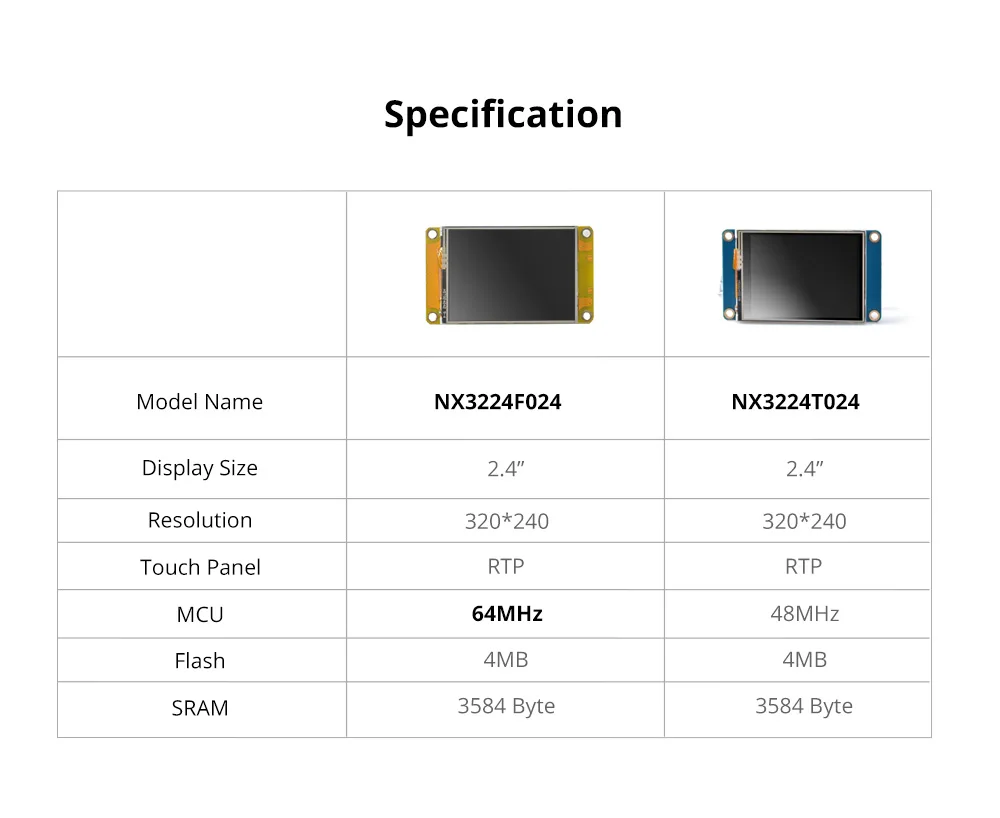

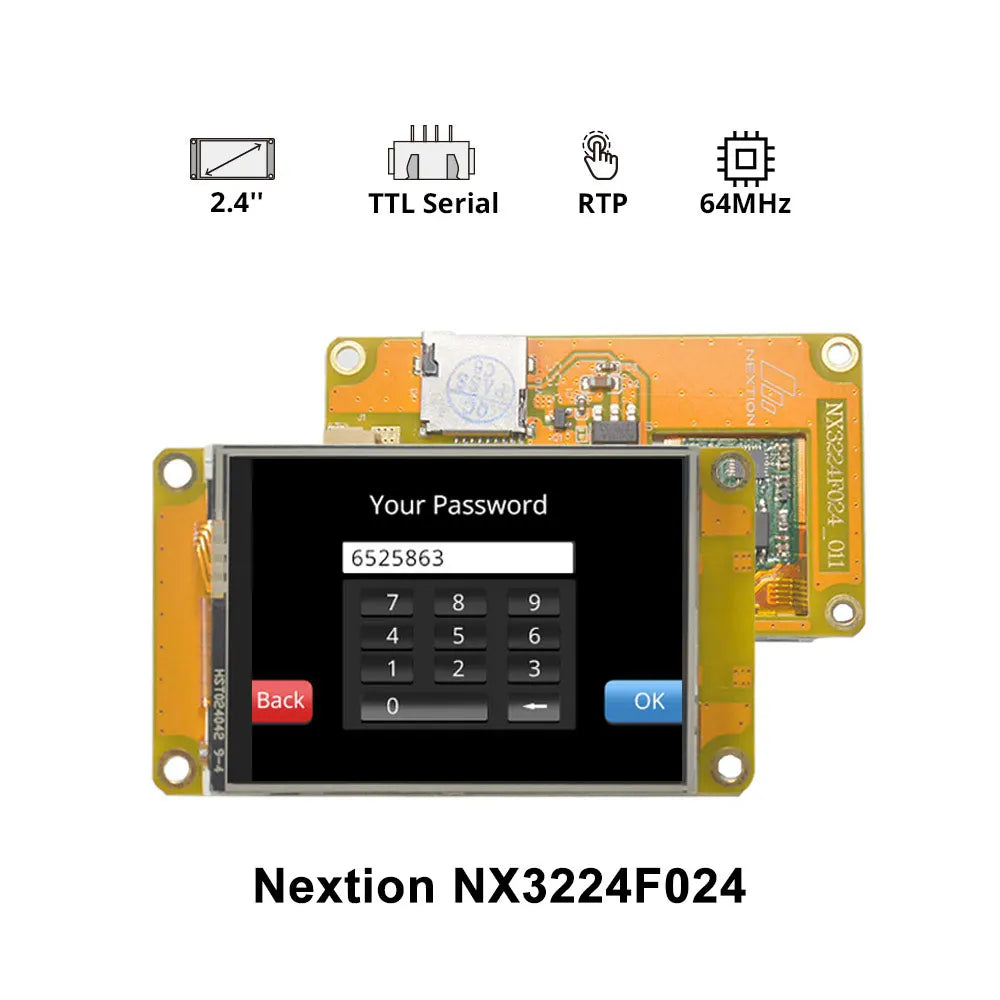

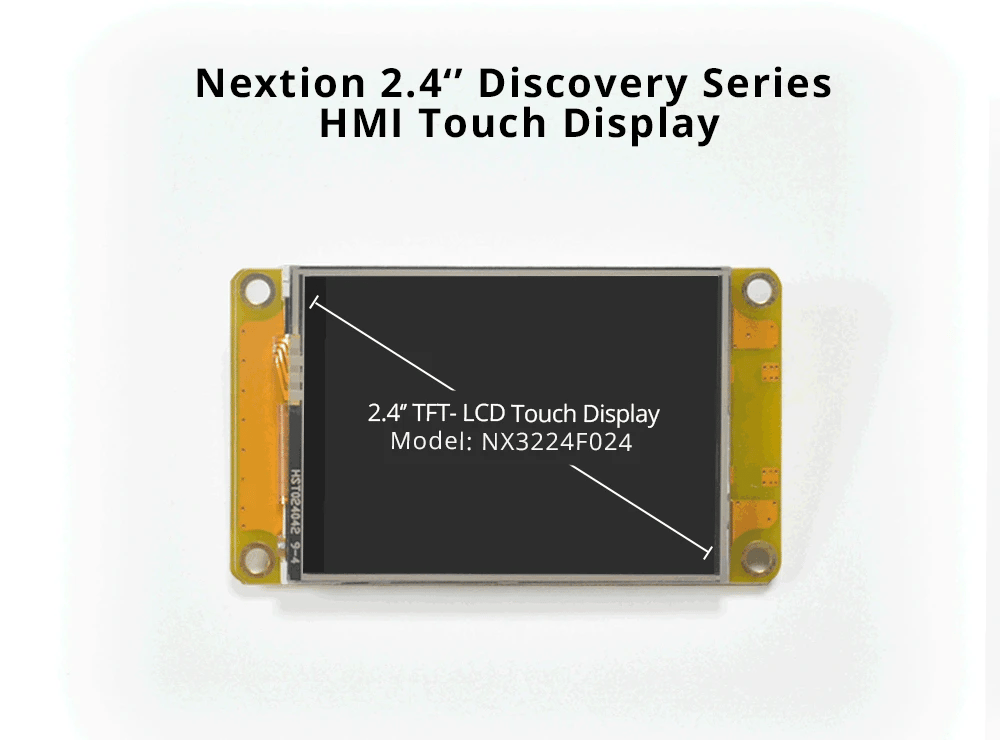

Hardware Feature of NX3224F024
2.4” LCD-TFT Resistive HMI touch display module
320 x 240 screen resolution
RGB 65K true-to-life colours
Onboard ARM® Cortex®-M0+ 64MHz MCU
3584 Byte SRAM
4 MB Flash memory
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

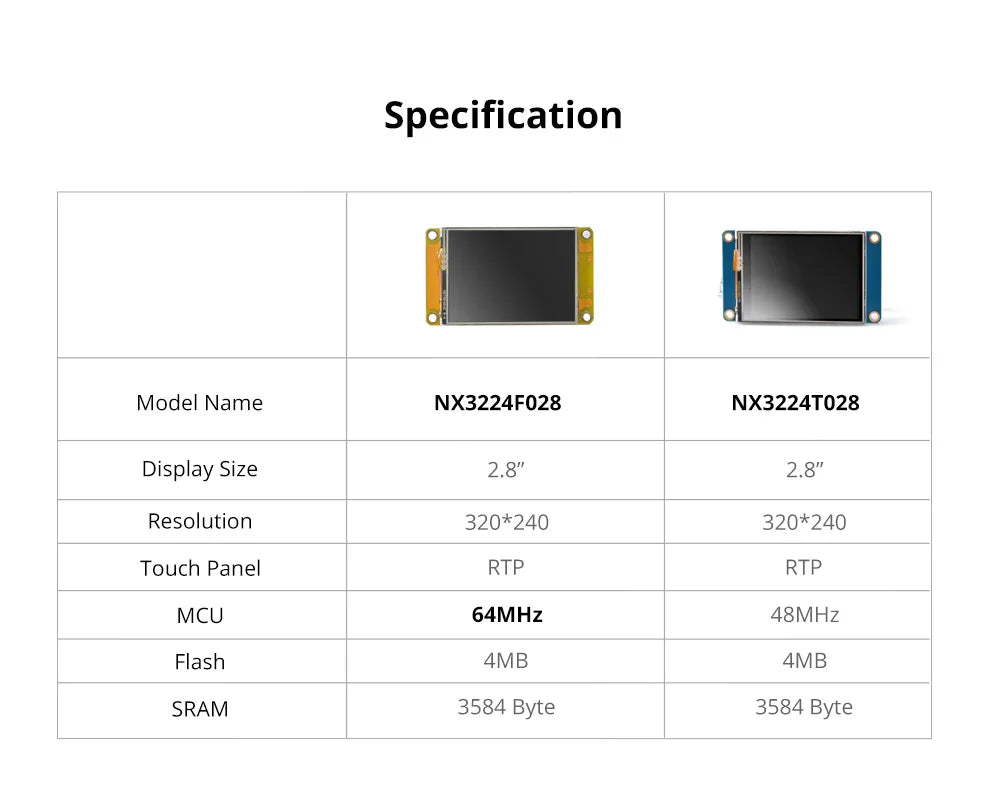

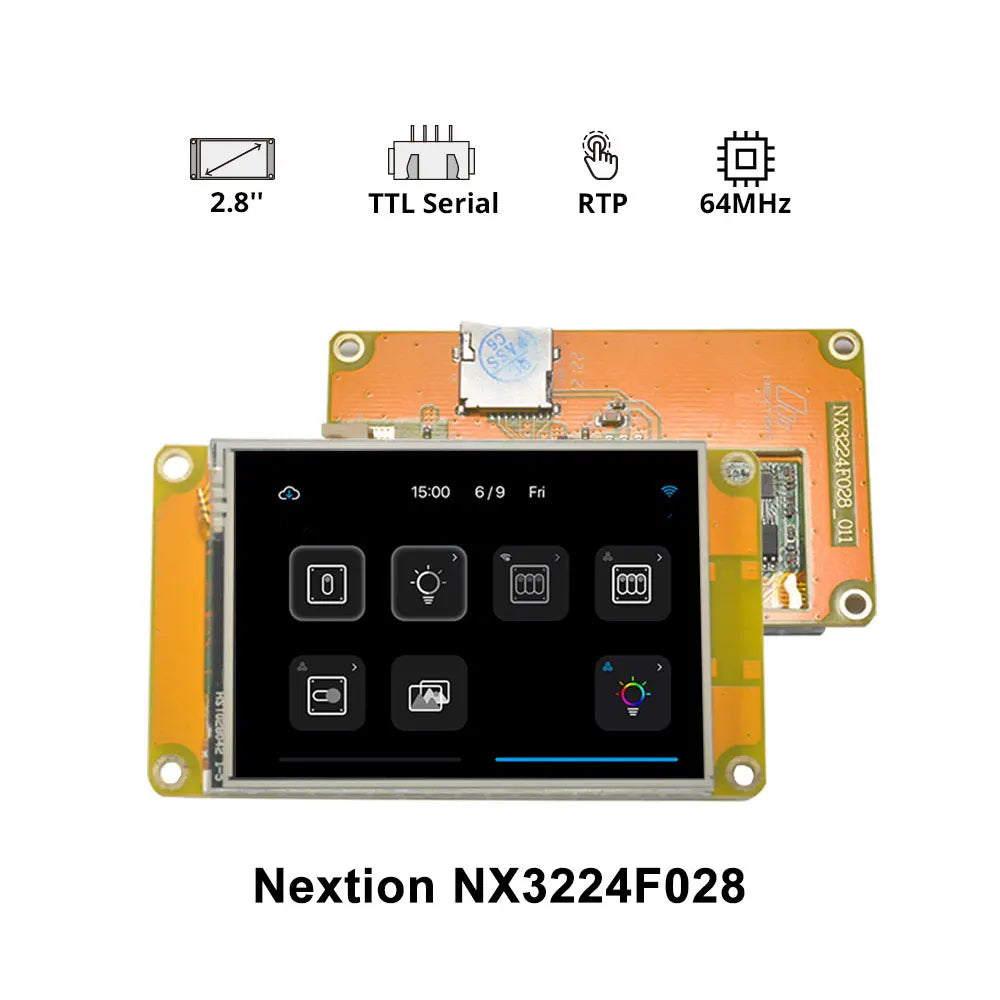

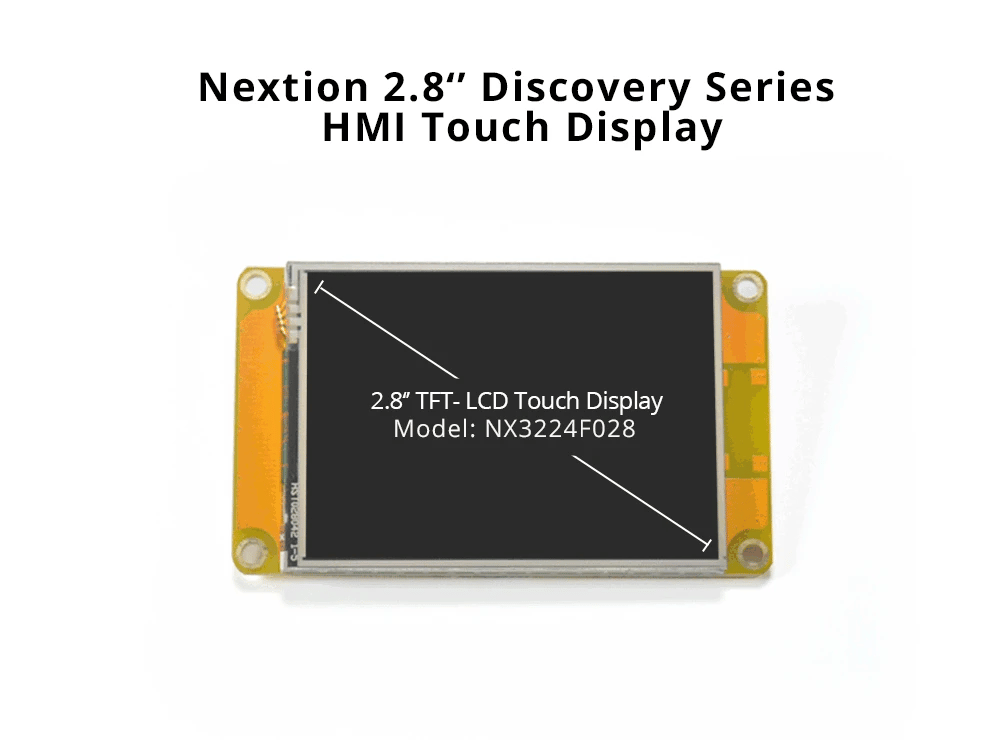

Hardware Feature of NX3224F028
2.8” LCD-TFT Resistive HMI touch display module
320 x 240 screen resolution
RGB 65K true-to-life colours
Onboard ARM® Cortex®-M0+ 64MHz MCU
3584 Byte SRAM
4 MB Flash memory
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

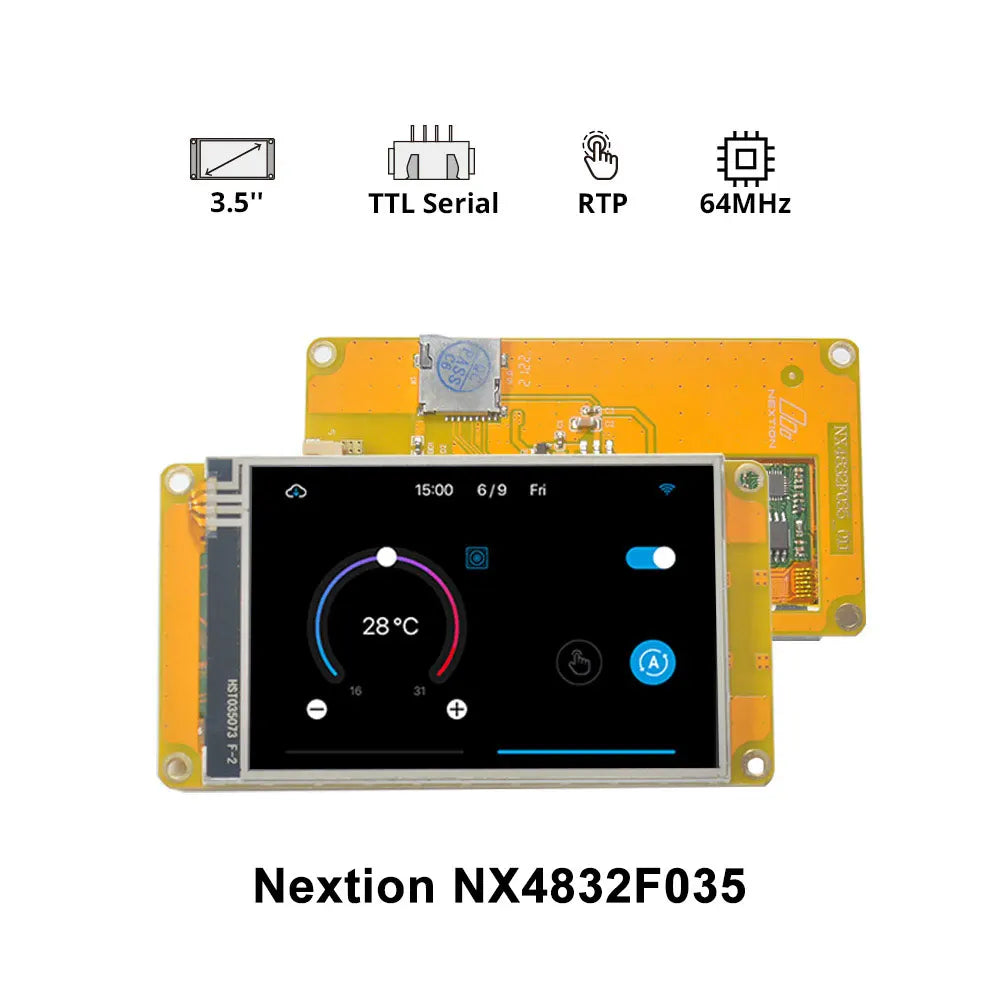

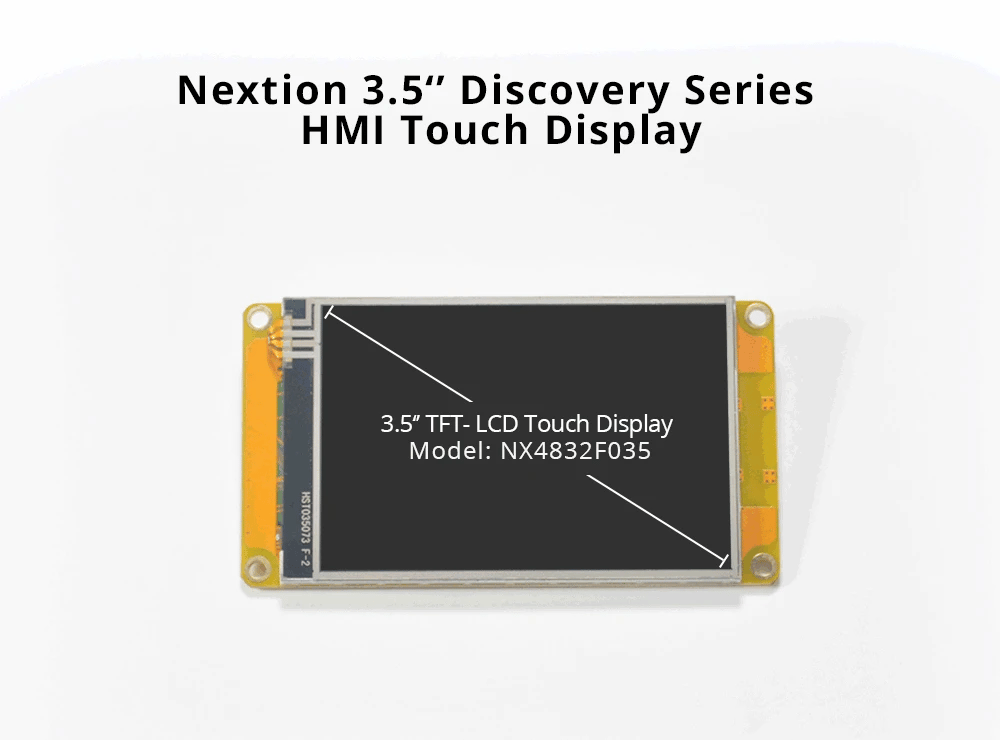

Hardware Feature of NX4832F035
3.5” LCD-TFT Resistive HMI touch display module
480 x 320 screen resolution
RGB 65K true-to-life colours
Onboard ARM® Cortex®-M0+ 64MHz MCU
3584 Byte SRAM
16 MB Flash memory
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

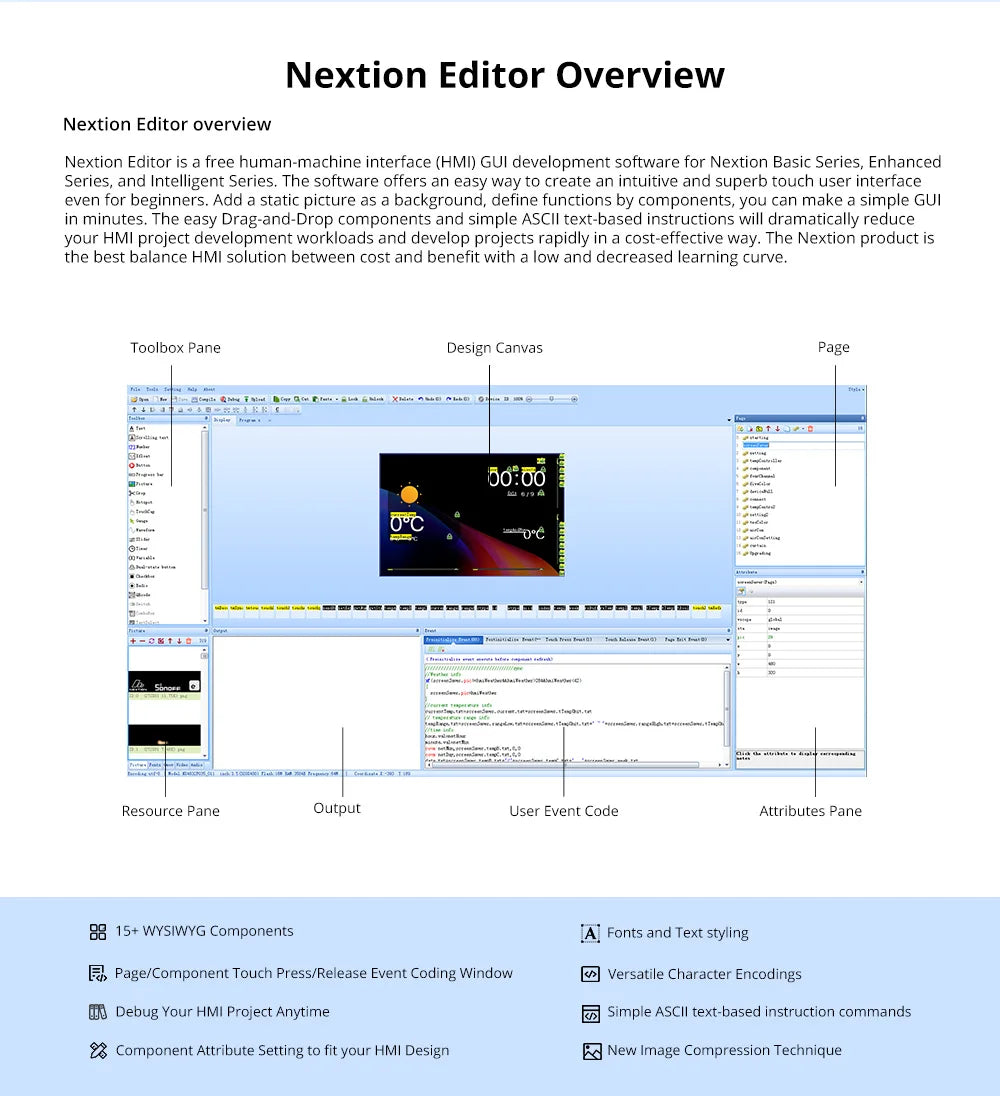

Nextion Editor Overview
Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

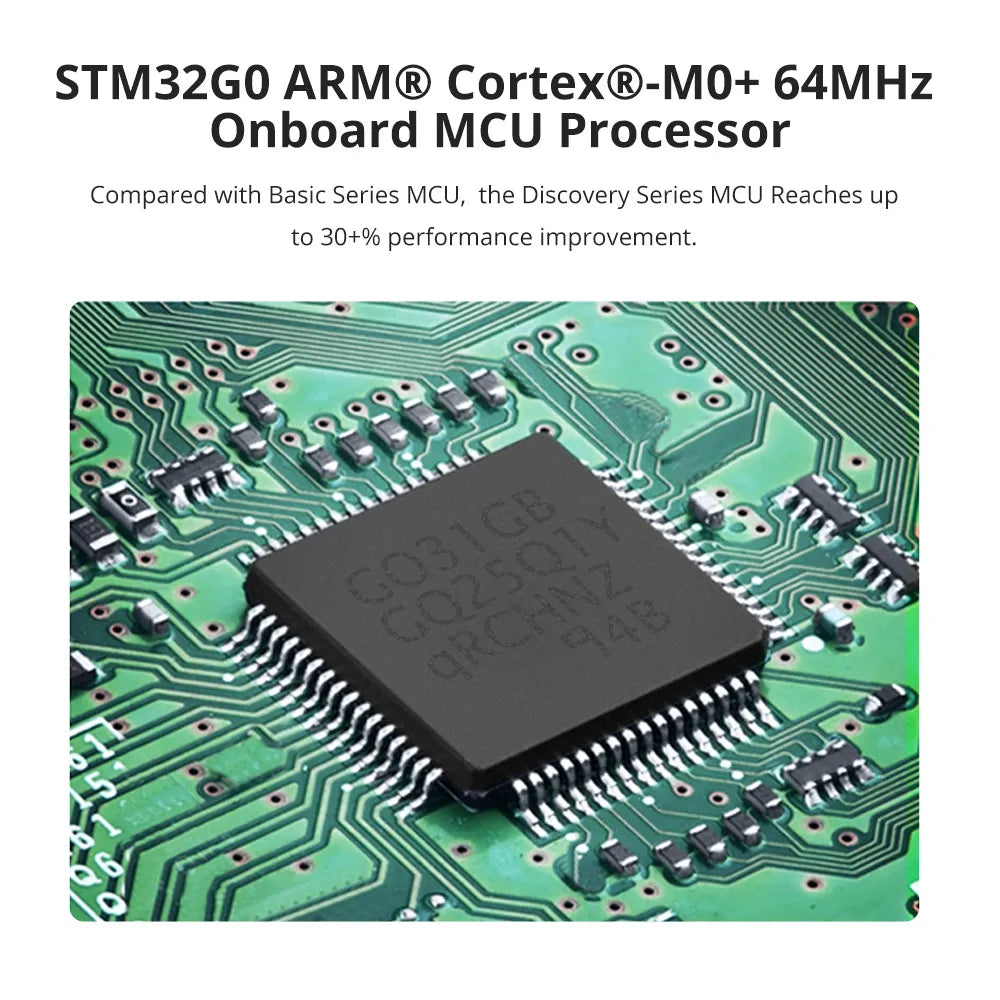

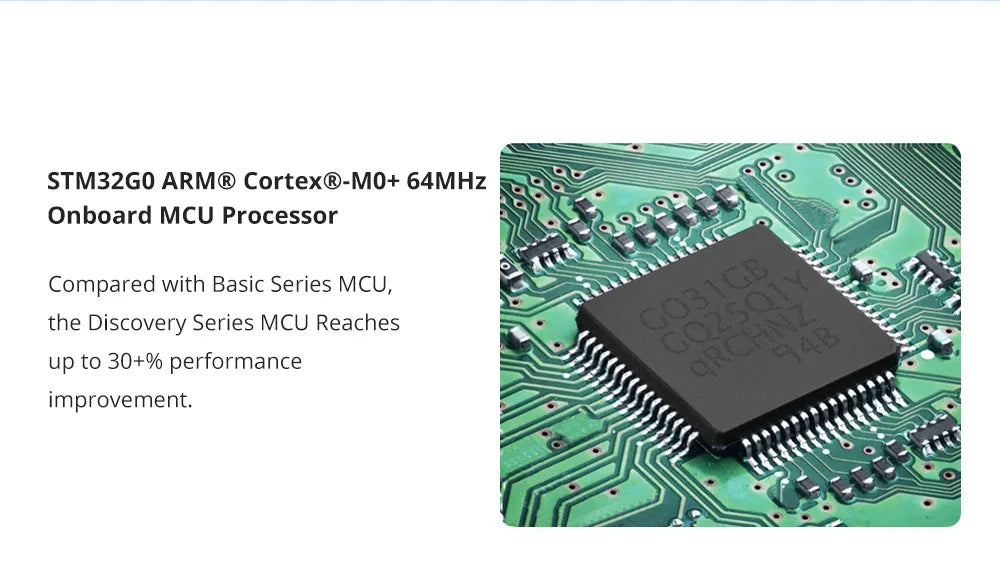

STM32G0 ARM® Cortex®-M0+ 64MHz Onboard MCU Processor
Compared with Basic Series MCU, the Discovery Series MCU Reaches up to 30+% performance improvement.

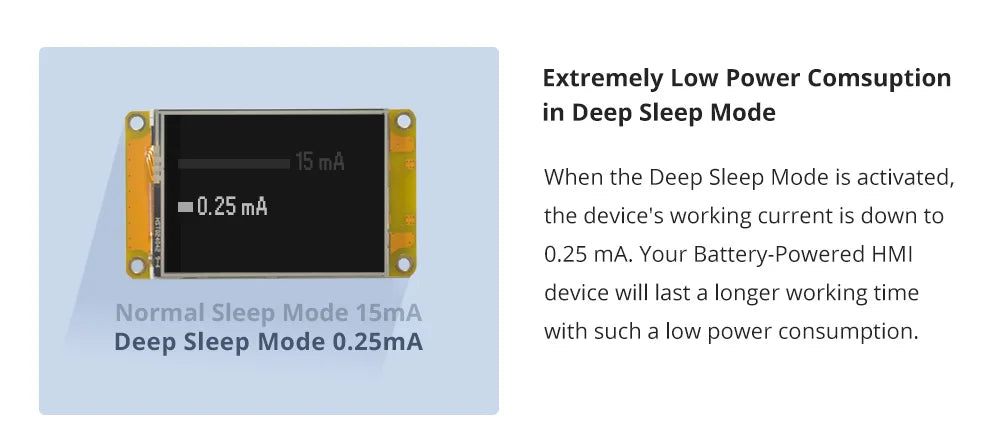

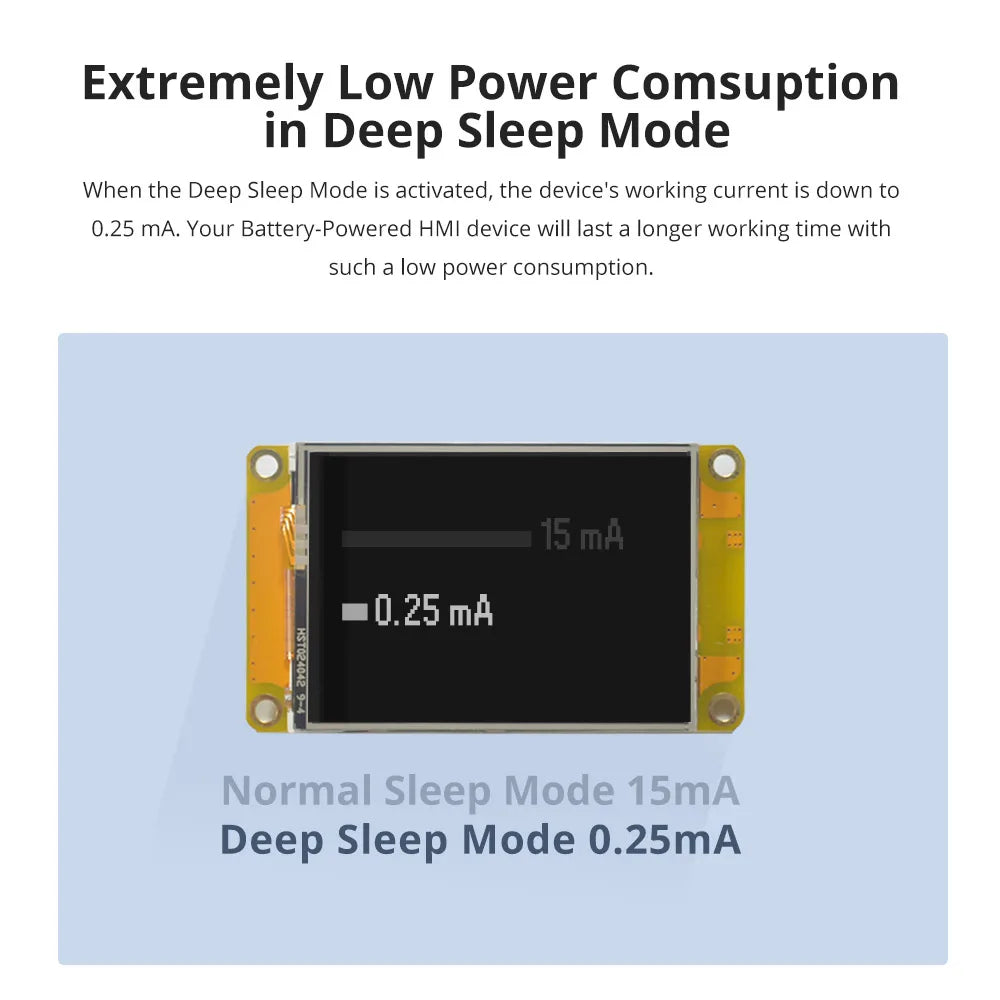

Extremely Low Power Comsuption in Deep Sleep Mode
When the Deep Sleep Mode is activated, the device's working current is down to 025mA. Your Battery-Powered HMI device will last a longer working time with such a low power comsuption.

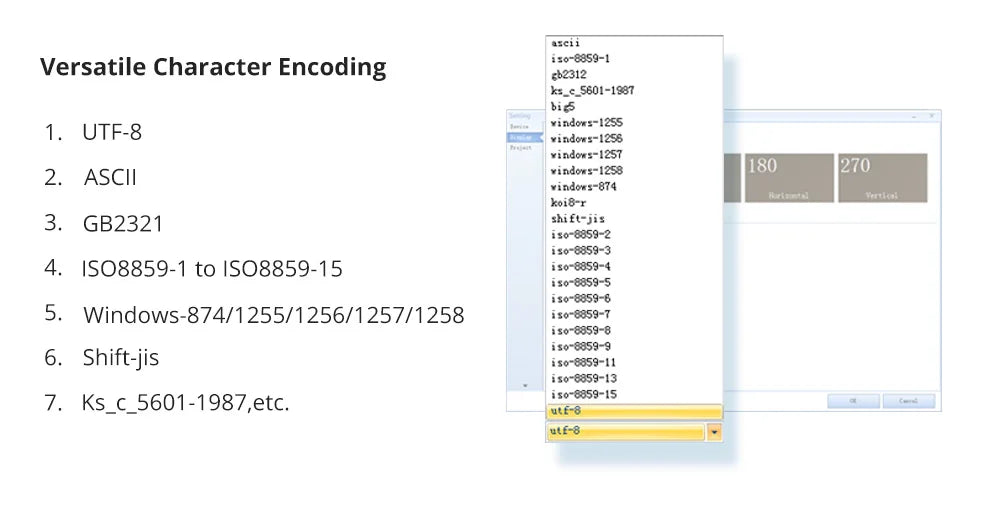

Versatile Character Encoding

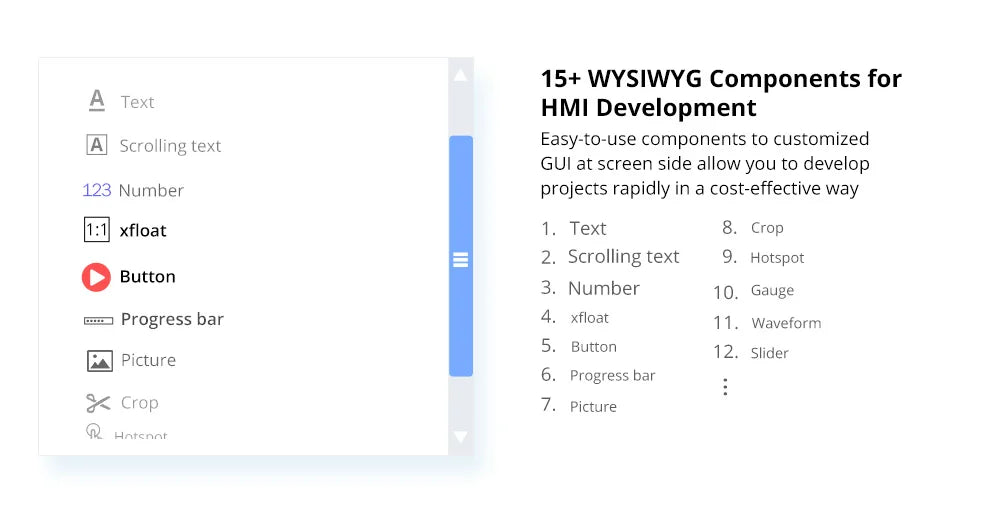

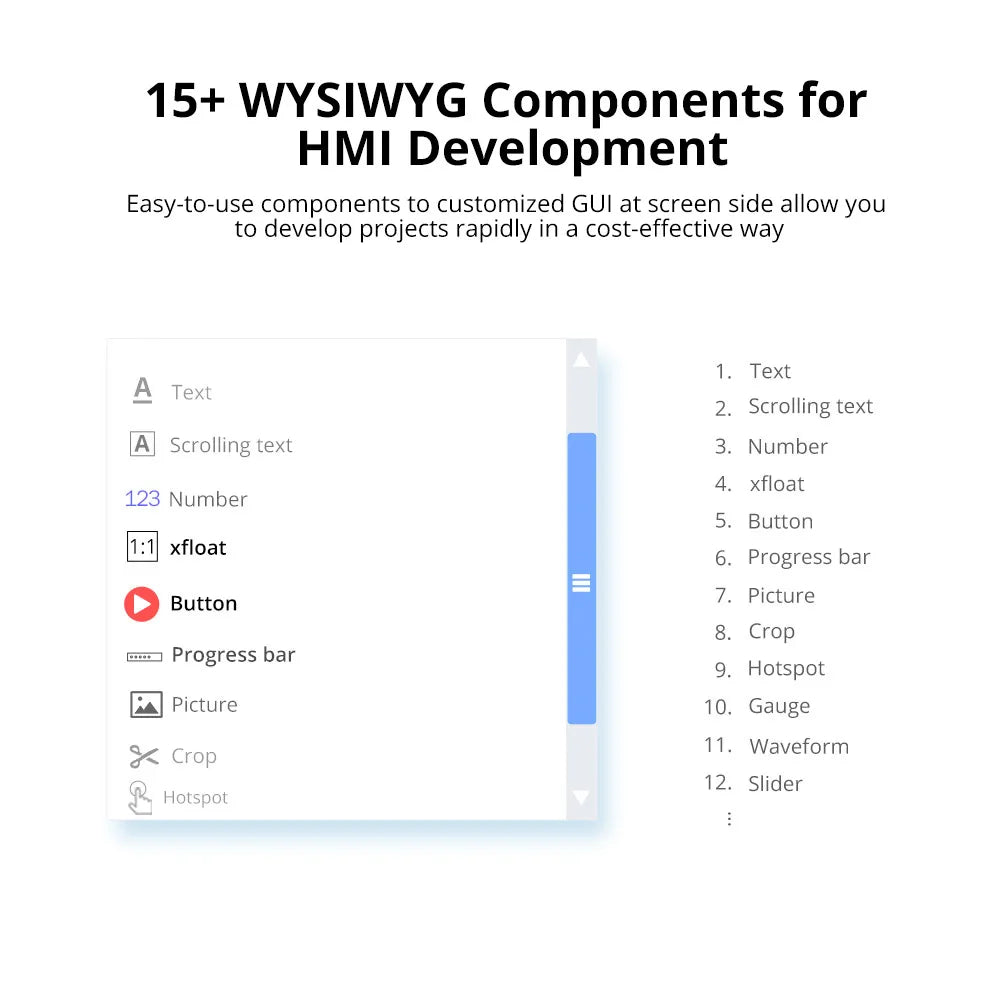

15+ WYSIWYG Components for HMI Development
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way.

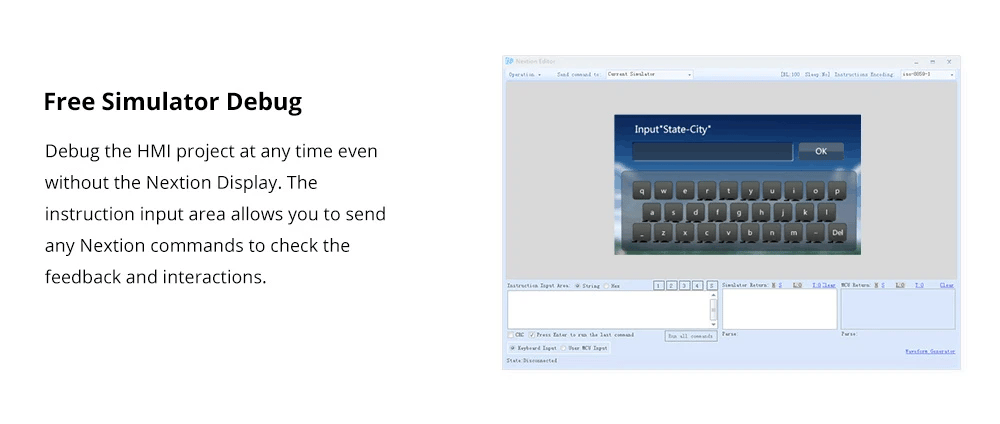

Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

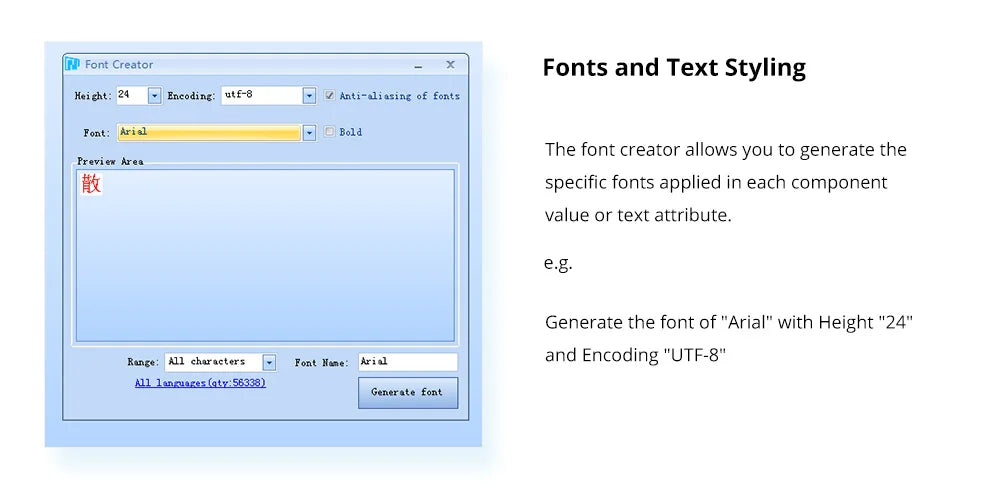

Fonts and Text Styling

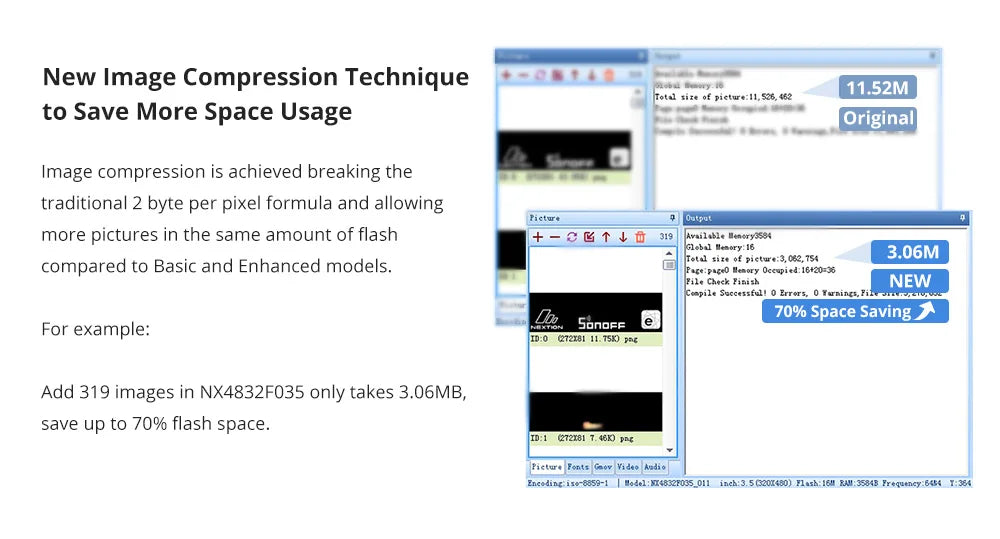

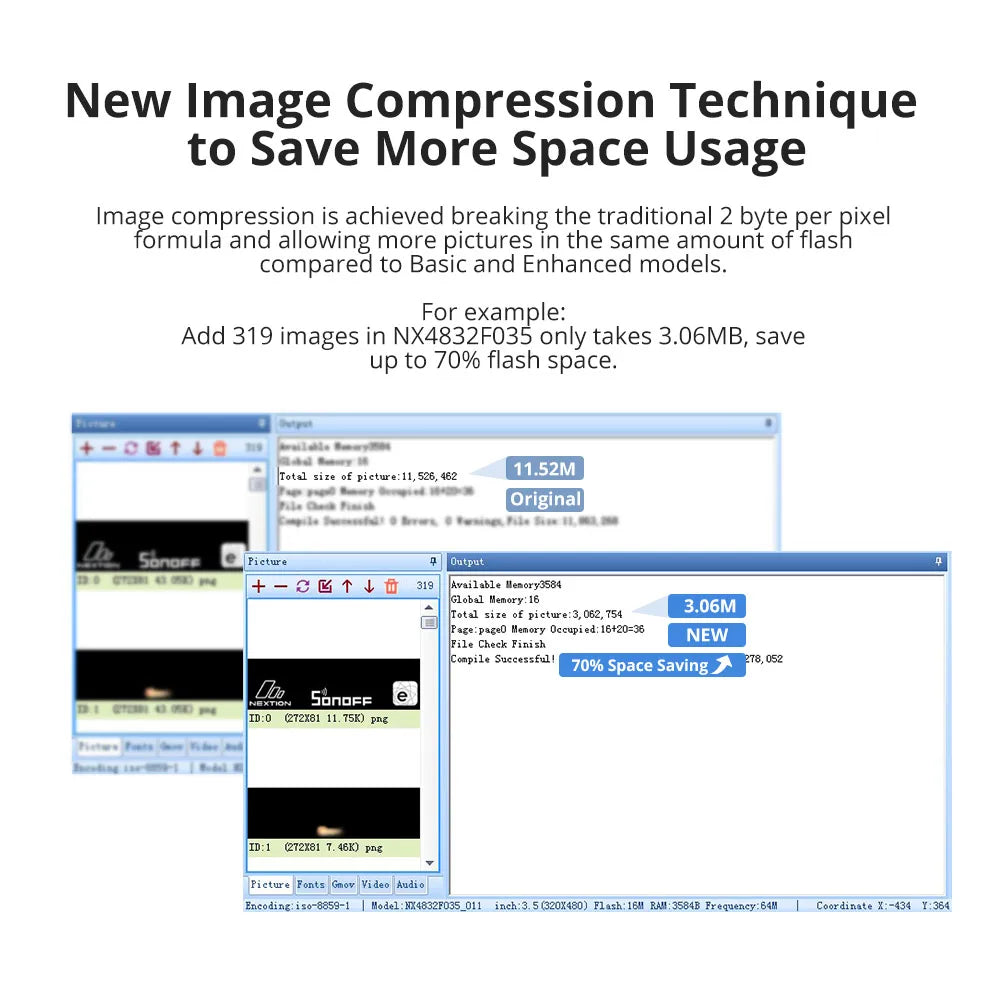

New Image Compression Technique to Save More Space Usage
Image compression is achived breaking the traditional 2 byte per pixel formula and allowing more pictures in the same amount of flash compared to Basic and Enhanced models.

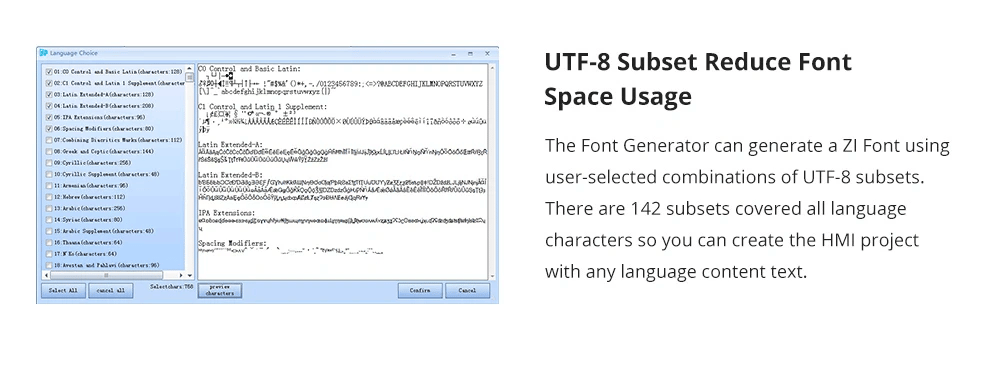

UTF-8 Subset Reduce Font Space Usage
The Font Generator can generate a ZI Font using user-selected combinations of UTF-8 subsets. There are 142 subsets covered all language characters so you can create the HMI project with any language content text.

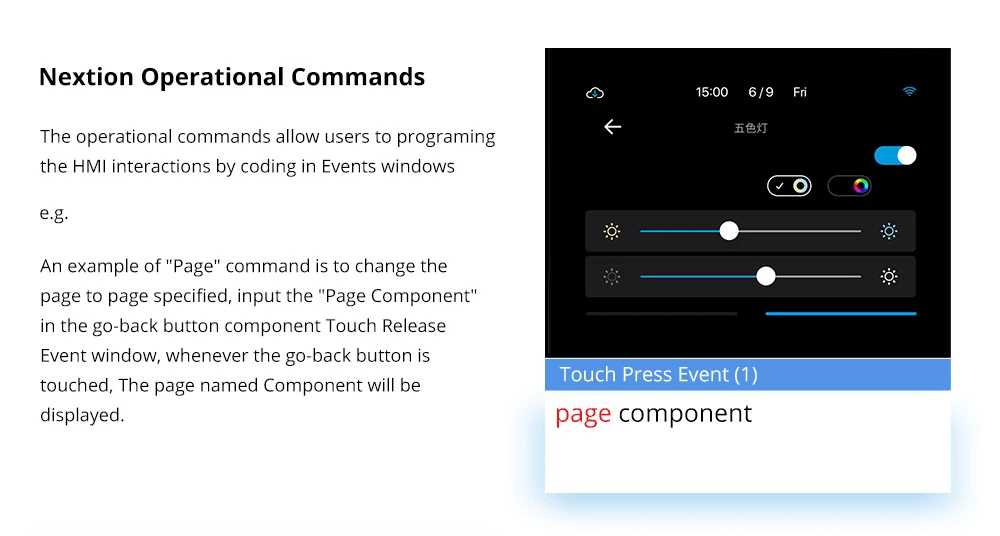

Nextion Opetational Commands
The operational commands allow users to programing the HMI interactions by coding in Events windows.

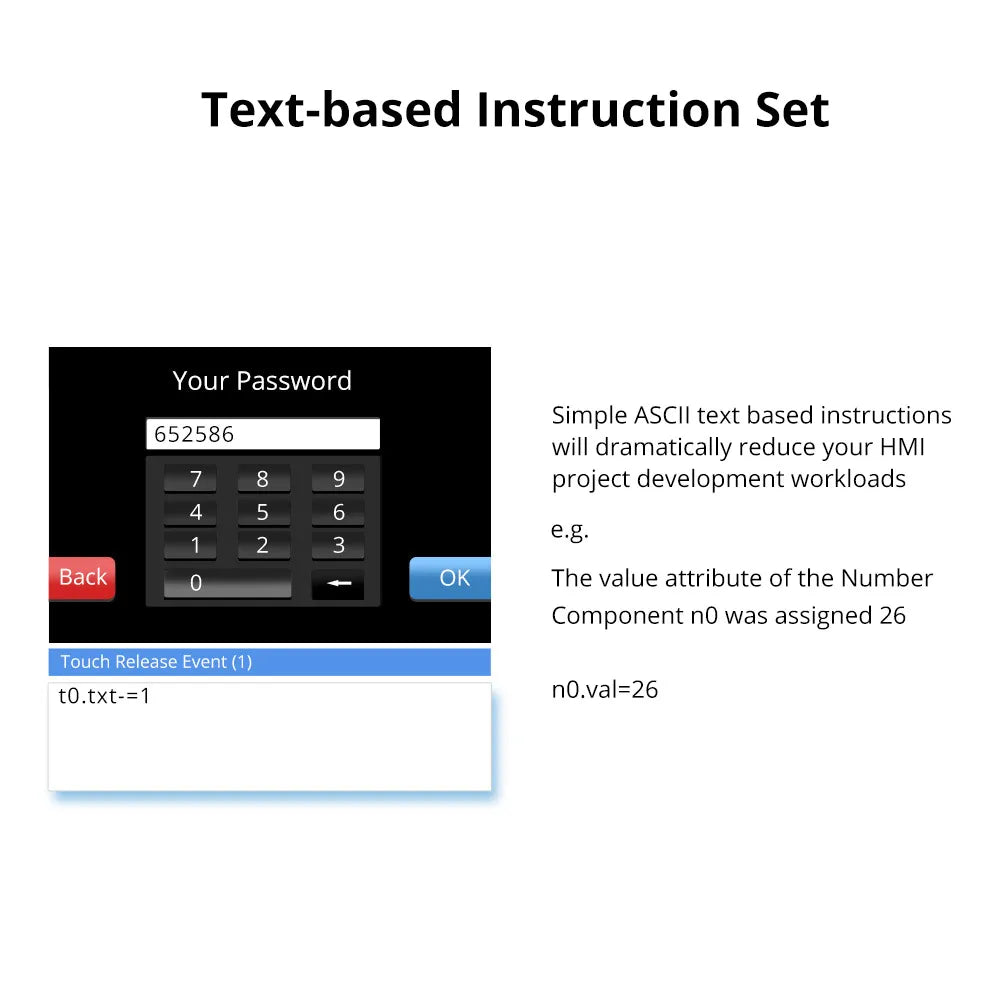

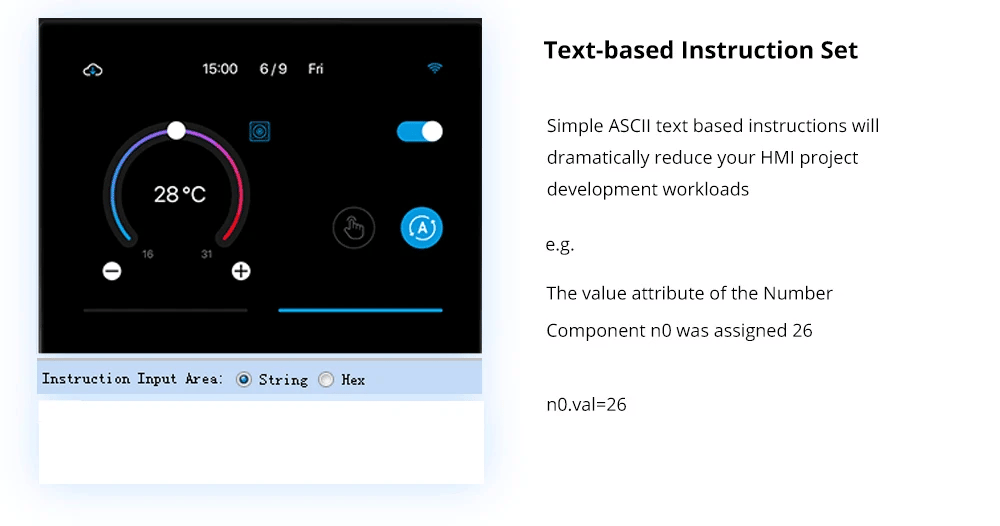

Text-based Instruction Set
Simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

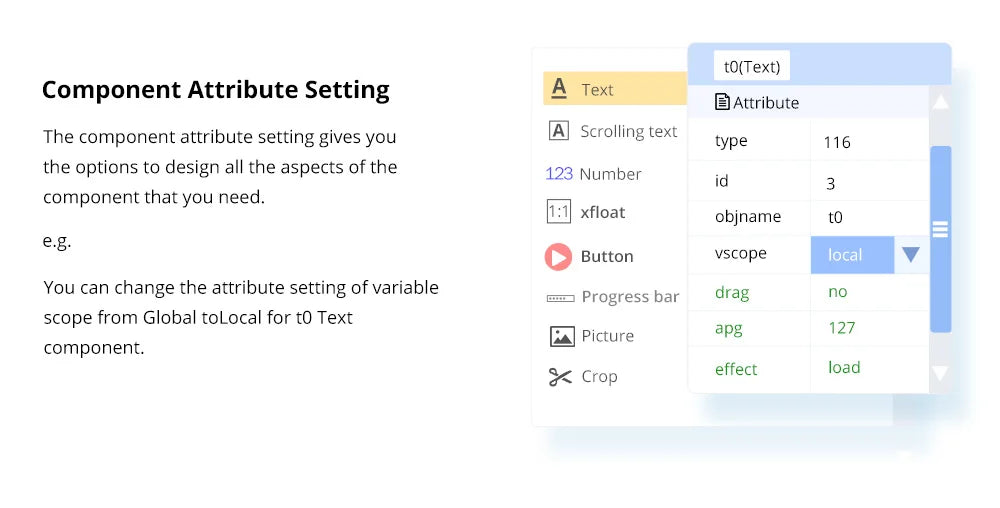

Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.

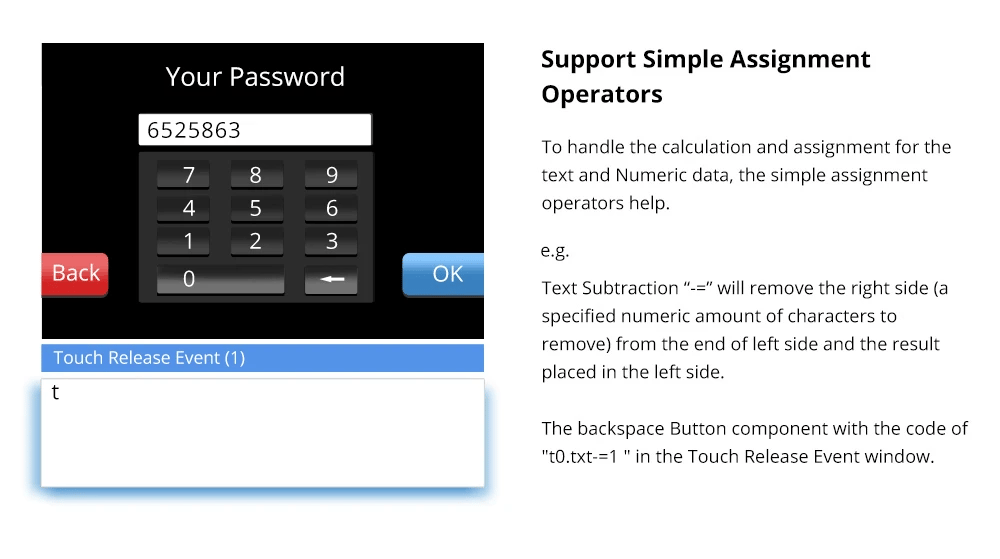

Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
