RM1,814.70 MYR
Sale price
RM1,814.70 MYR
Regular price
RM1,818.67 MYR
Taxes included.
Shipping calculated at checkout.

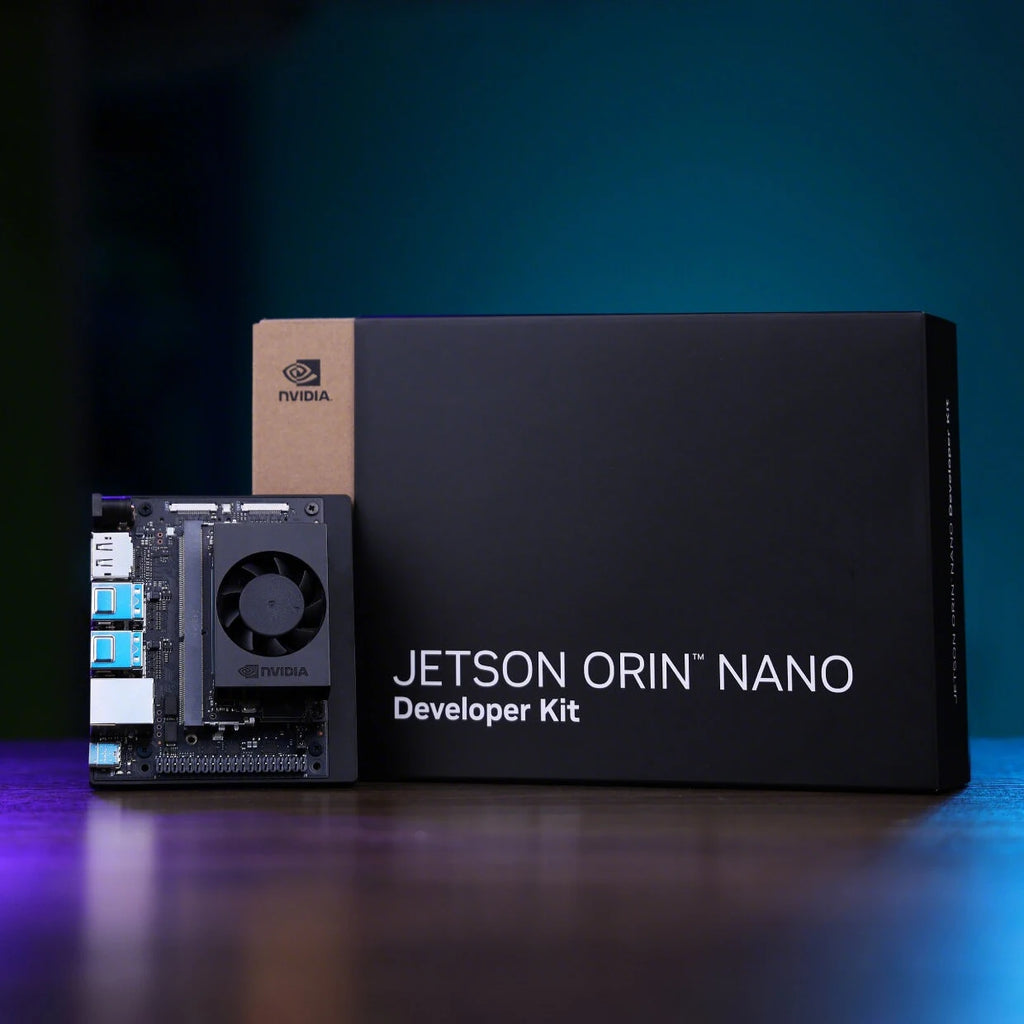

The NVIDIA Jetson Orin Nano is a powerful AI edge computing platform designed for robotics, machine vision, and neural network inference at the edge. Featuring NVIDIA's GPU architecture and dedicated AI accelerators, it delivers desktop-class AI performance in a compact module.
Key Features:
- NVIDIA Ampere GPU architecture
- Up to 40 TOPS AI performance
- Multiple camera interfaces (MIPI CSI-2)
- Gigabit Ethernet, USB 3.2, PCIe
- Compatible with JetPack SDK
- Ideal for ROS, TensorFlow, PyTorch workloads
What's in the Box:
- 1x Jetson module + carrier board (kit version)
Best suited for advanced robotics, computer vision, autonomous systems, and AI research projects.
Decription:

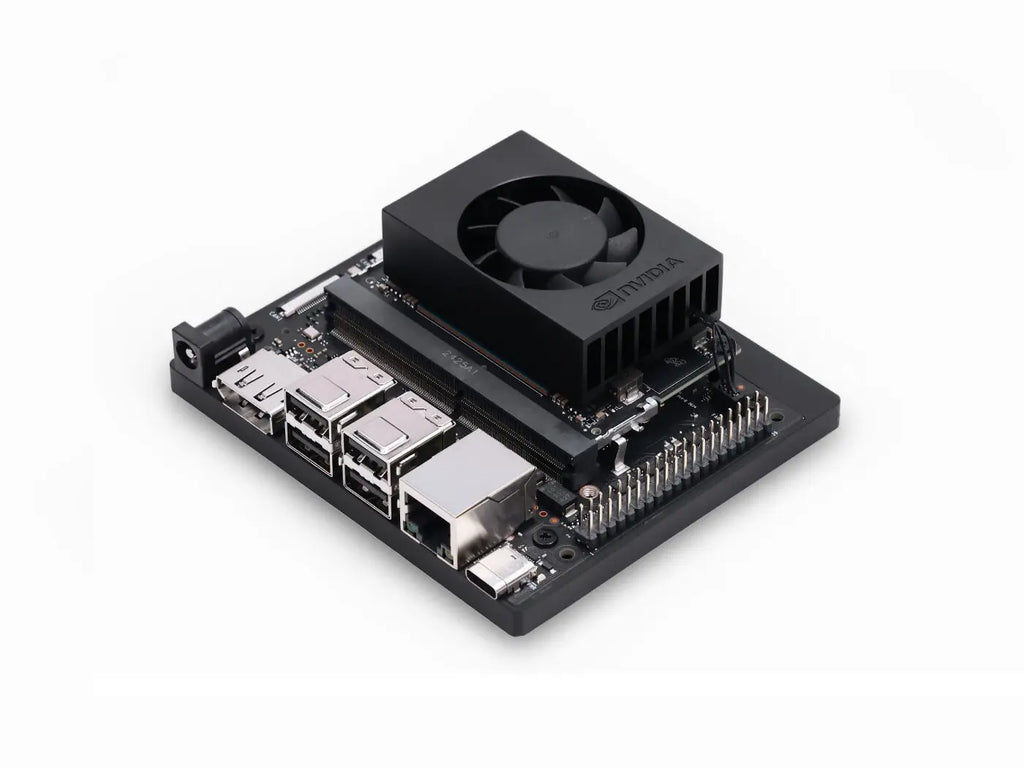

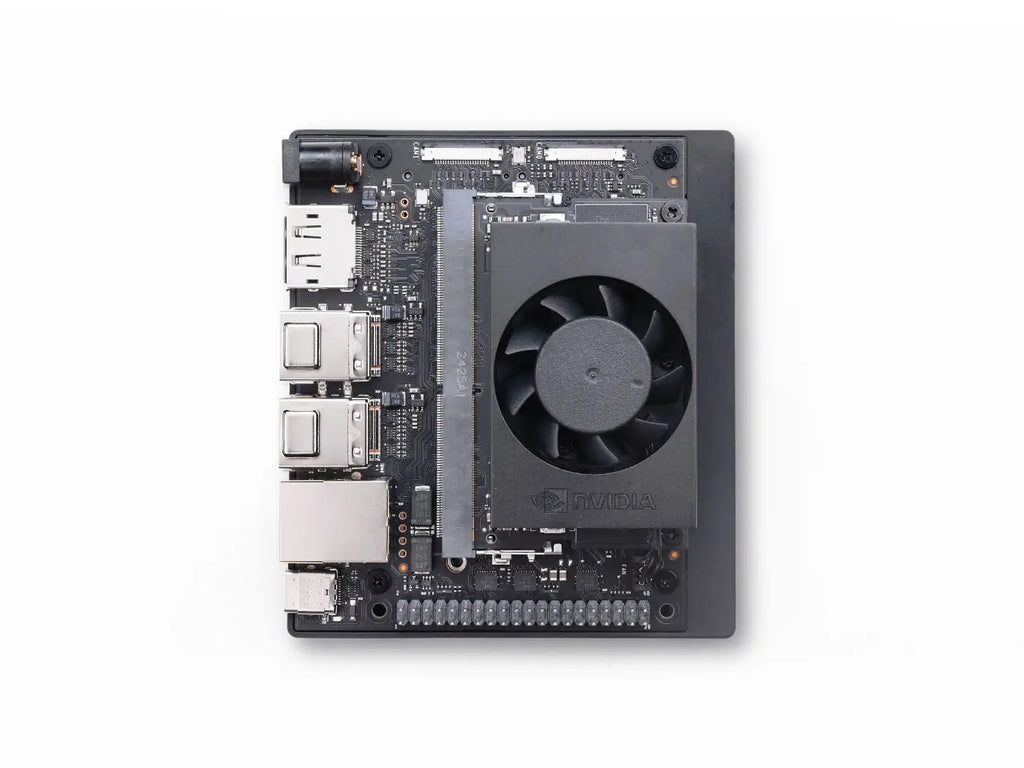

NVIDIA Jetson Orin Nano Super Developer Kit is a compact edge AI board, built with Jetson Orin™ Nano 8GB module which delivers up to 67 TOPS AI performance--a 1.7X improvement over its predecessor(NVIDIA Jetson Orin Nano Developer Kit).
It has a rich set of IOs including USB 3.2 Gen 2 ports, 2x M.2 Key M for SSD, pre-installed Wi-Fi module, and more,
Feature
Note
reComputer Super J4012 comes with Jetson Orin NX 16GB module, delivers up to 157 TOPS in MAXN Super Mode.
Your Jetson Orin Nano Developer Kit comes with an old firmware flashed at the factory, which is NOT compatible with JetPack 6.x. Therefore, you must upgrade to the latest firmware, before inserting SD card flashed with JetPack 6.x image (unless the firmware previuosly updated). Please send me messge to download the latest software for the Jetson Orin Nano Super developer kit.
Excellent AI Performance for production: low power and low latency with up to 67 TOPS AI performance, featuring an Ampere architecture GPU and a 6-core ARM CPU, which enables multiple concurrent AI application pipelines and high-performance inference.
Hand-size edge AI device: compact size at 100mm x79mm x 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.
Expandable with rich I/Os: 4x USB 3.2 Gen 2 ports, DP 1.2, M.2 key E with pre-installed Wi-Fi module, 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO.
Jetson Orin Nano Super Developer Kit configuration |
|
NVIDIA Jetson Orin Nano Developer Kit (original) |
NVIDIA Jetson Orin NanoSuper Developer Kit |
GPU
|
NVIDIA Ampere architecture
1,024 CUDA Cores
32 Tensor Cores
635 MHz
|
NVIDIA Ampere
architecture
1,024 CUDA Cores
32 Tensor Cores
1,020MHz
|
AI PERF
|
40 INT8 TOPS (Sparse)
20 INT8 TOPS (Dense)
10 FP16 TFLOPs
|
67 TOPS (Sparse)
33 TOPS (Dense)
17 FP16 TFLOPs
|
CPU
|
6-core Arm Cortex-
A78AE v8.264-bit CPU
1.5 GHz |
6-core Arm Cortex-
A78AE v8.264-bit CPU
1.7 GHz |
Memory
|
8GB 128-bit LPDDR5
68GB/s |
8GB 128-bit LPDDR5
102GB/s |
MODULE POWER |
7W|15W |
7W|15W|25W |
Jetson Orin Nano System on Module |
AI Performance |
Jetson Orin Nano 8GB with SD card slot on module - 67 TOPS |
GPU |
NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and
32 Tensor cores
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
Memory |
8GB 128-bit LPDDR5 102 GB/s |
Video Encoder |
1080p30 supported by 1-2 CPU cores |
Video Decoder |
1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265) |
Power |
7W-25W |
Carrier Board |
Storage |
1x microSD slot (UHS-1 cards up to SDR104 mode) |
Networking |
Ethernet |
1x Gigabit Ethernet (10/100/1000M) |
PCIe |
M.2 KEY M |
4x PCIe GEN3
2x PCIe GEN3
|
M.2 KEY E |
1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module);
PCIe (x1), USB 2.0, UART, I2S, and I2C
|
I/O |
USB |
4x Type A USB 3.2 Gen2
1x Type C for UFP
|
CSI Camera |
2x MIPI CSI-2 (22pin) |
Display |
1x DP 1.2 (+MST) connector |
Fan |
1x 4 pin Fan Connector (5V PWM) |
CAN |
1x CAN |
Multifunctional Port |
1x 40-Pin Expansion header
1x 12-Pin Control and UART header
|
RTC |
RTC 2-pin, supports CR1220 but not included |
Power Supply |
9V-19V DC |
Mechanical (W x D x H) |
100mm x 79mm x 21mm |
Product Weight |
0.176 kg |
Warranty |
1-year warranty for development use only |
Application Fields:
AI Video Analytics
Machine Vision
Autonomous Mobile Robot (AMR)
Generative AI

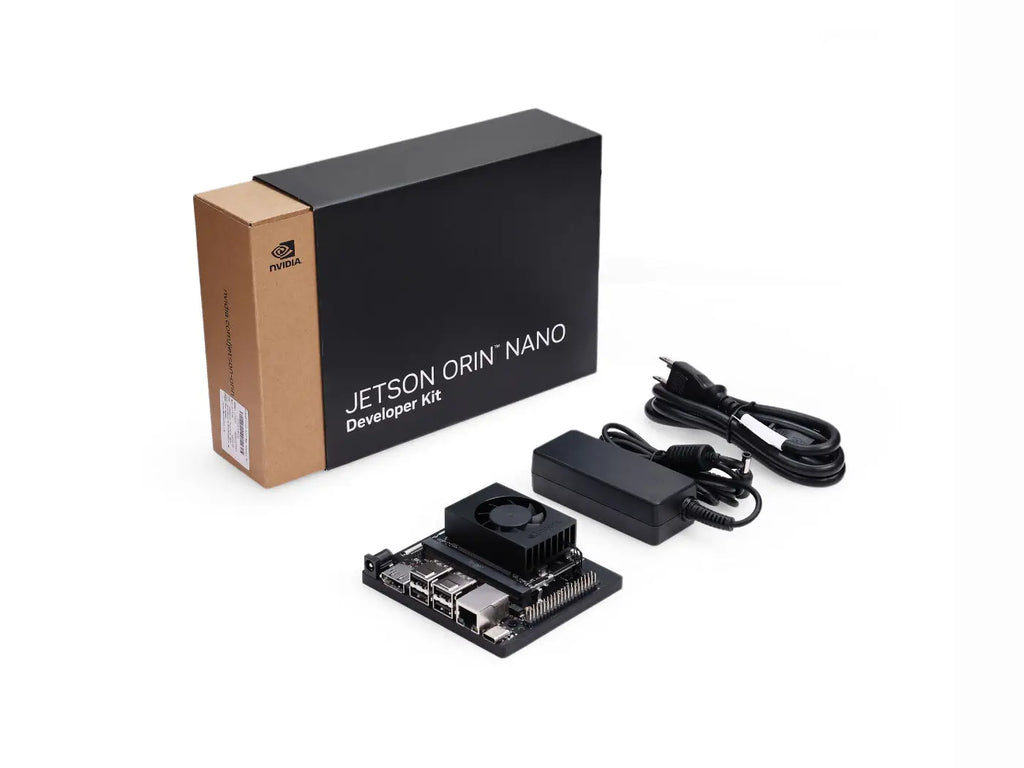

NVIDIA Jetson Orin™ Nano Super Developer Kit |
x1 |
19V Power Adapter |
x1 |
Type B (US, JP, CA, PH) Power Cable |
x1 |
Type I (CN) Power Cable |
x1 |
UPC Label |
x1 |
Quick Start and Support Guide |
x1 |
Note: Items not included
microSD card (64GB UHS-1 or bigger recommended)
USB keyboard and mouse
Computer display
USB cable
NVMe SSD card
