Official Micro:Bit V2 Board Educational Microcontroller
Official Micro:Bit V2 Board Educational Microcontroller
The BBC Micro:bit V2 is a compact educational microcontroller designed to introduce programming and embedded systems. It includes onboard audio, sensors, and improved interactivity features.
Key Features:
- 5x5 LED matrix display
- Built-in microphone and speaker
- Bluetooth 5.0 connectivity
- Touch-sensitive logo input
- Accelerometer and compass sensors

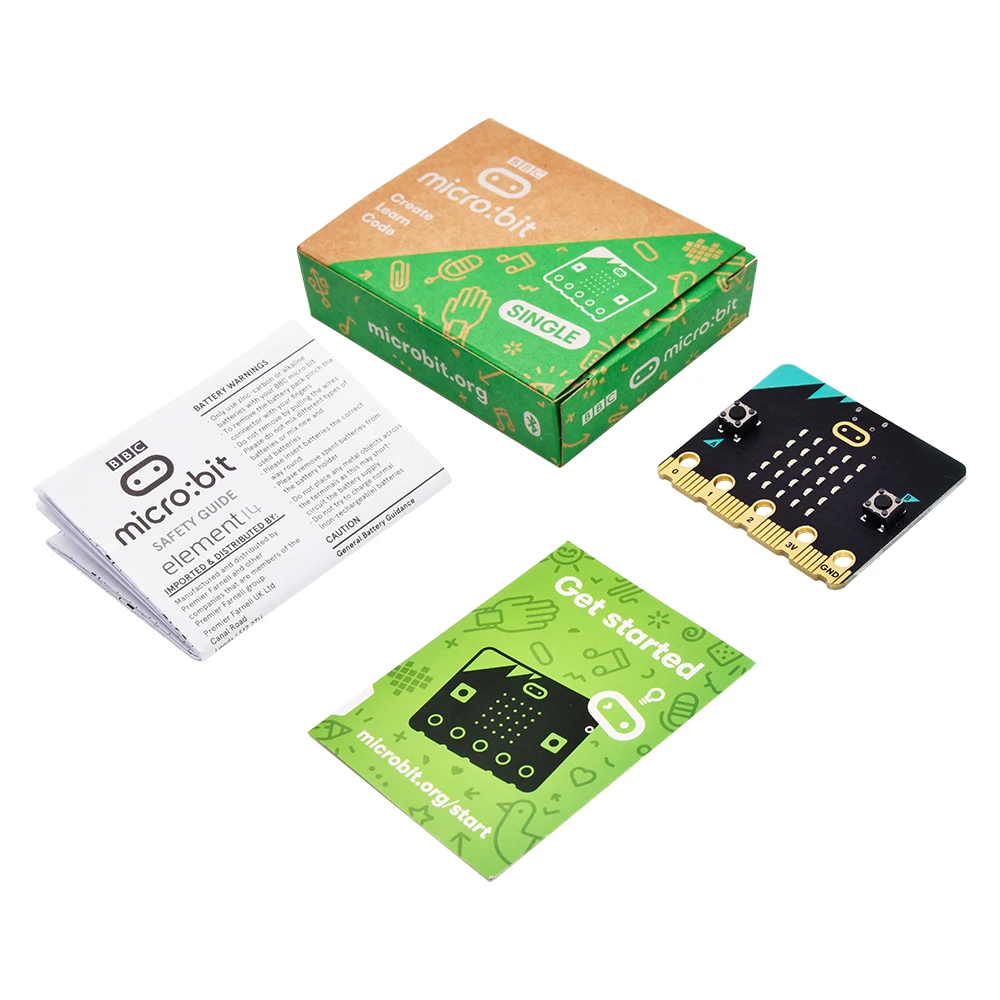

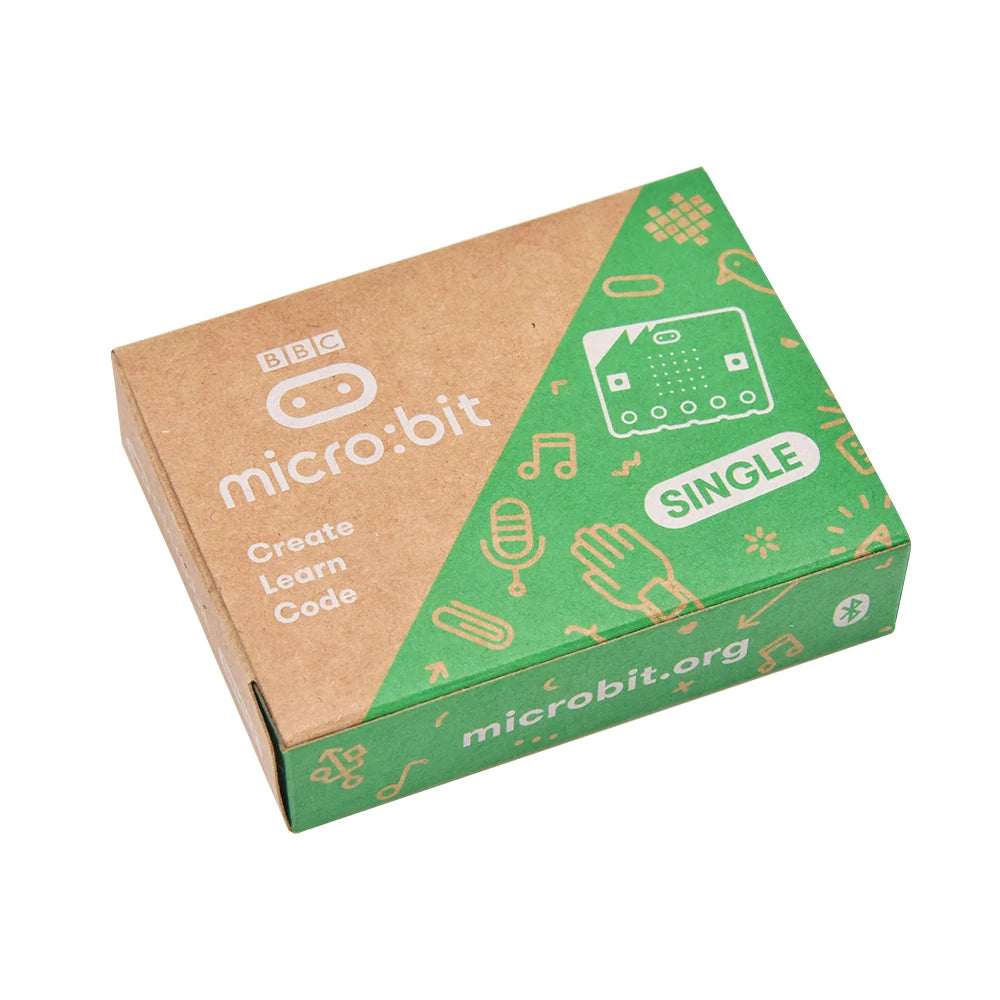

What’s in the Box:
- 1x Micro:bit V2 board
- Getting started guide
Best suited for:
Beginner programming, embedded systems learning, and interactive electronics
Micro: bit is an ARM-based microcontroller designed by BBC. Consisting of onboard Bluetooth, accelerometer, electronic compass, three buttons, 5 x 5 LED dot matrix, it is only half the size of credit card and mainly used for programming education for teenagers. In order to carry it conveniently, we put a micro: bit control board and two manuals in storage bag. The storage bag is light and beautiful.
Specification
Working voltage: 3.3V
Power supply voltage: 3-3.3V
Micro USB program burning/power supply port: 5V
PH2.0 power interface: 3-3.3V
Alligator clip interface: 3-3.3V
Detection range: 0-3.3V
Processor: Arm Cortex-M4 32 bit processor with FPU
Working temperature: 0-85℃
Micro USB program burning/power supply port
PH2.0 3V power supply port
4mm alligator clip interface*5
Gold finger interface*20
Product size: 43*52mm
Weight: 9.6g
Features
Support PXT graphical programming interface developed by Microsoft
Support Windows, macos, iOS and Android system
The programming environment is based on WEB services, no need to download additional compilers
Burn and simulate program via USB on PC terminal
Burn and simulate program via Bluetooth
Support multiple communication programming languages including javasript, python, mbed c.
On-board Resource
Application Processor：Nordic nRF52833，64MHz ARM Cortex-M4, 512KB Flash、128KB RAM
Bluetooth Wireless Communication：Bluetooth 5.1 with Bluetooth Low Energy，2.4GHz ISM ，50 2MHz channels
Micro:bit Radio：2.4GHz Freq band，1Mbps or 2Mbps Channel rate
LSM303AGRthree-axis accelerator and magnetic sensor
Temperature sensing：on-core NRF52，Sensing range：-40℃ ~ 105℃
Speaker：JIANGSU HUANENG MLT-8530
Microphone：Knowles SPU0410LR5H-QB-7 MEMS，-38dB ±3dB @ 94dB SPL
25 Pcs red LEDs
Three mechanical buttons including two user buttons and a reset button
A touch logo

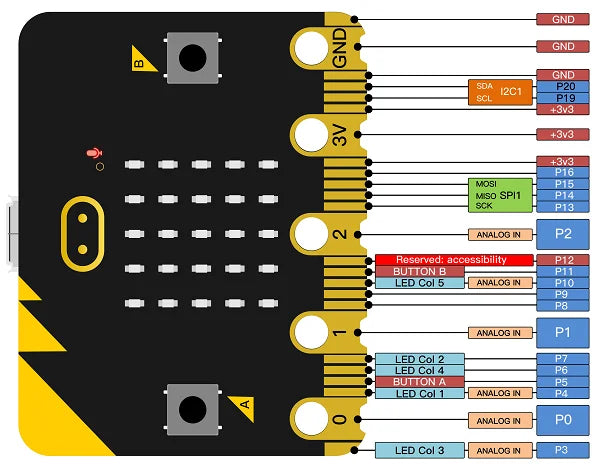

MicroUSB power-supply/download connector，power socket, edge connector，including SPI, PWM, I2C, support 17 pcs GPIO
