Tact Push Button Switch
Tact Push Button Switch

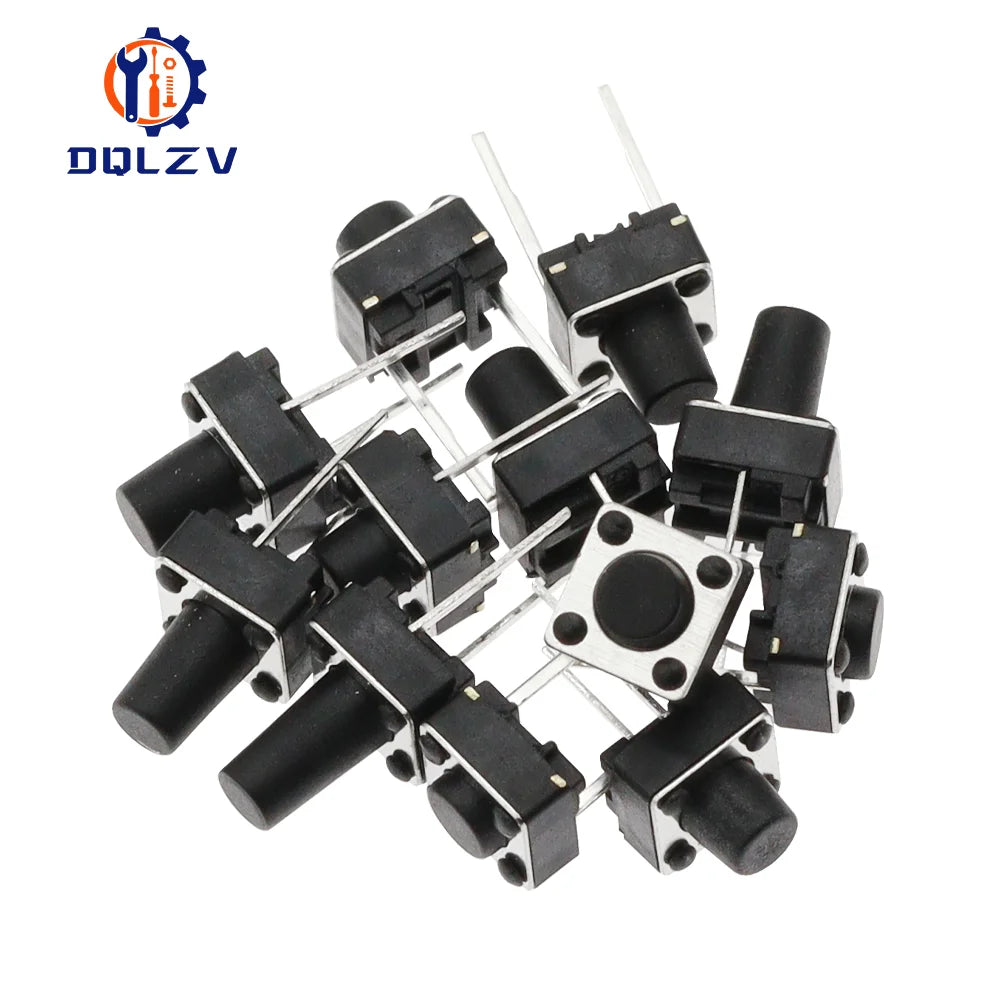

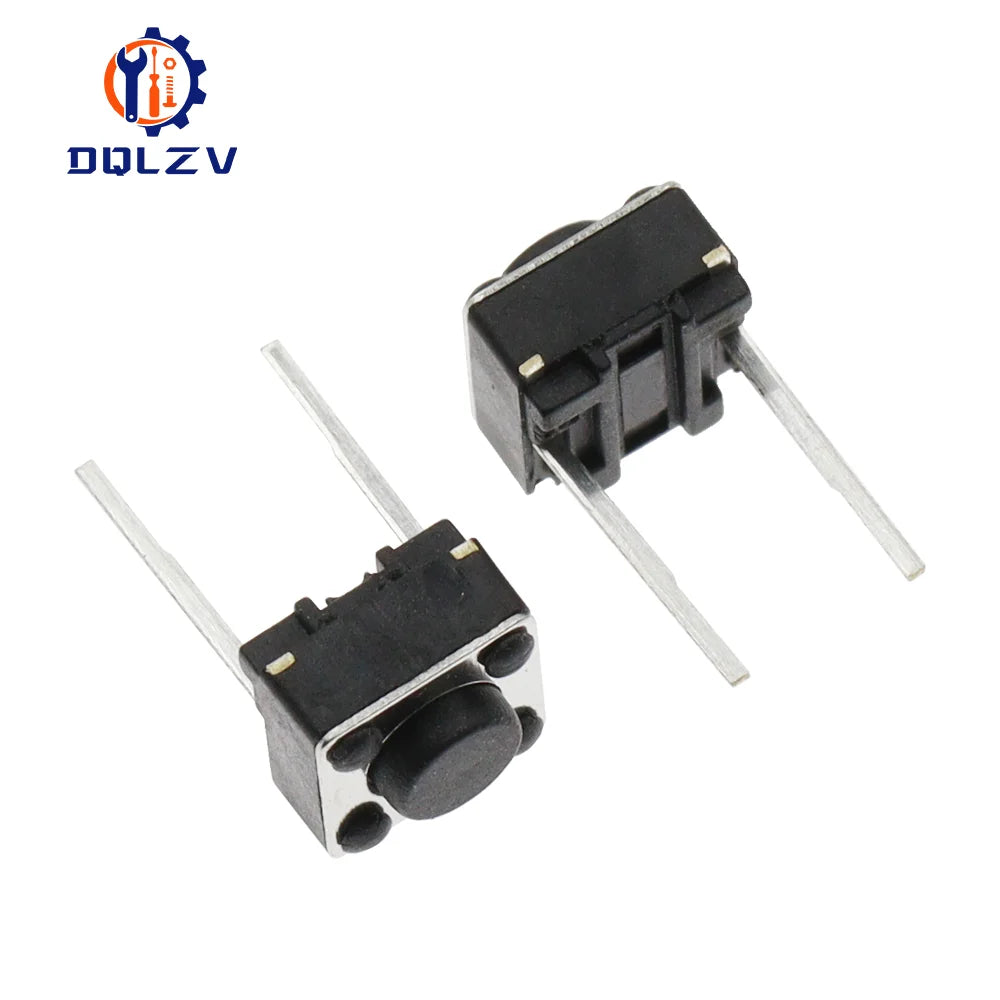

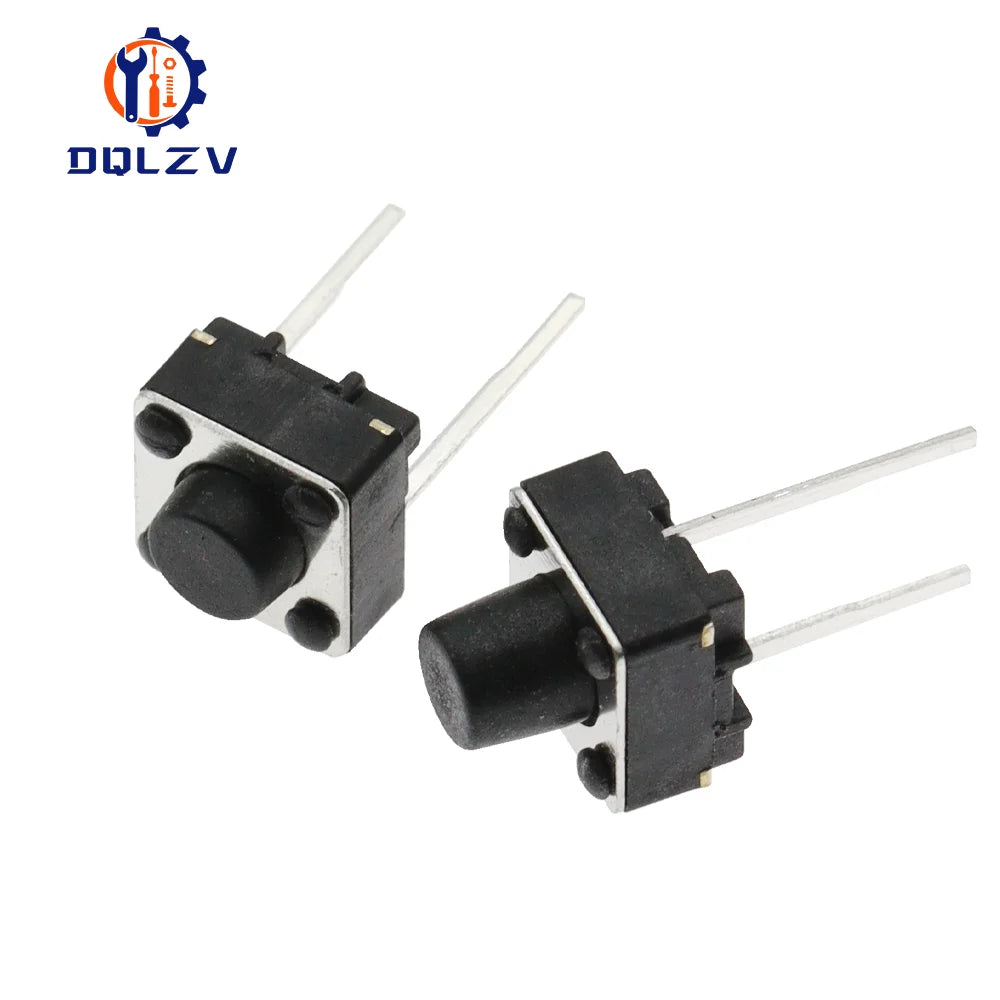

These tactile push button switches provide reliable momentary input for microcontroller and electronic projects.
Key Features:
- Momentary switch operation
- Tactile feedback
- Through-hole mounting
- Multiple actuator heights available
- Compact PCB footprint
What's in the Box:
- Selected quantity of Tact Push Button Switches
Best suited for:
Reset buttons, user input systems, and keypad interfaces
PACKAGE FOR 20Piecs/lot and 50Pieces/lot
High Quality Tactile Button Switch Momentary Tact 6X6mm 2 PIN DIP SMD Series

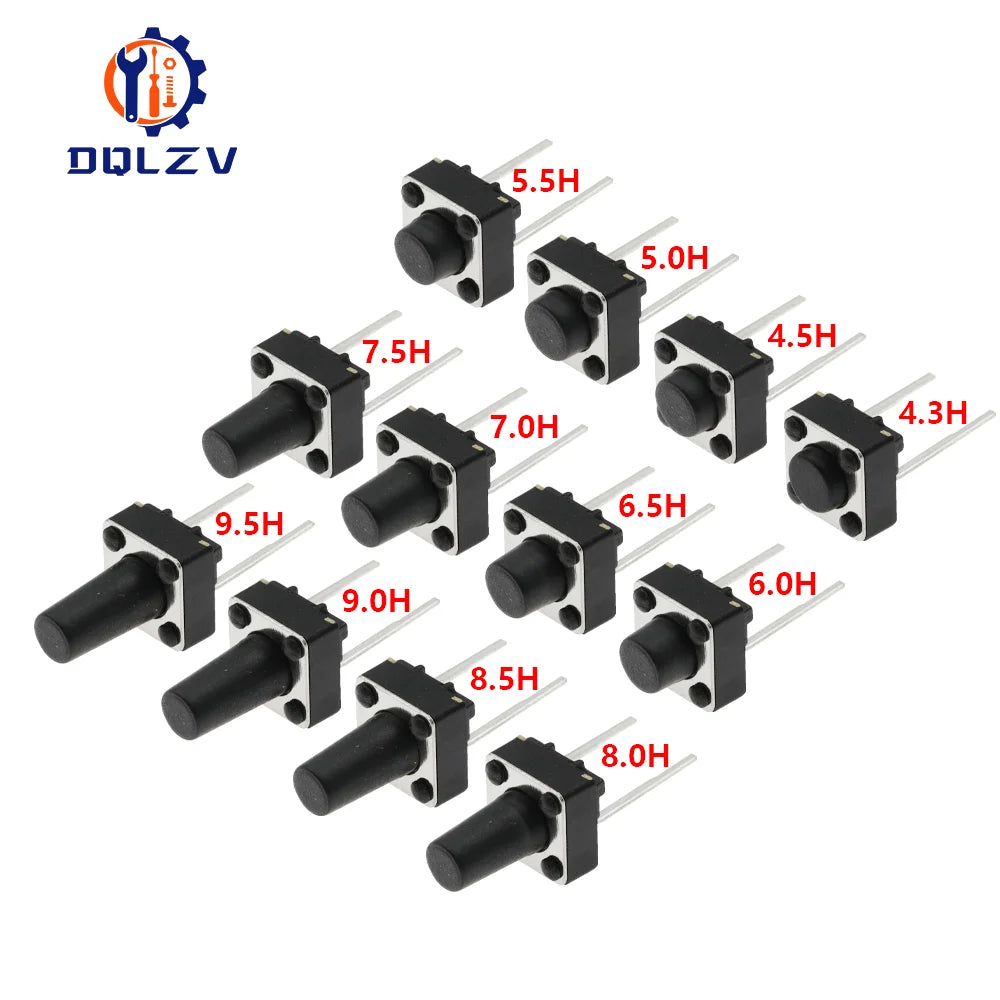

Height Includes:4.3mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/11mm/12mm/13mm/14mm/15mm/16mm
Main technical indicators of tact switch series
(Specification of TACT switch Series)
Operating temperature range Temperature: -25°~+-85°C
Rated Load: DC12V 0.1A
Contact Resistance: <=0.03Ω
Withstand Voltage: AC250 V (50Hz) /MIN
Actuation Force: 1.3+-0.5N
Insulation Resistance Lnsulation Resistance :>=100MΩ
Life: 100000 times (times)

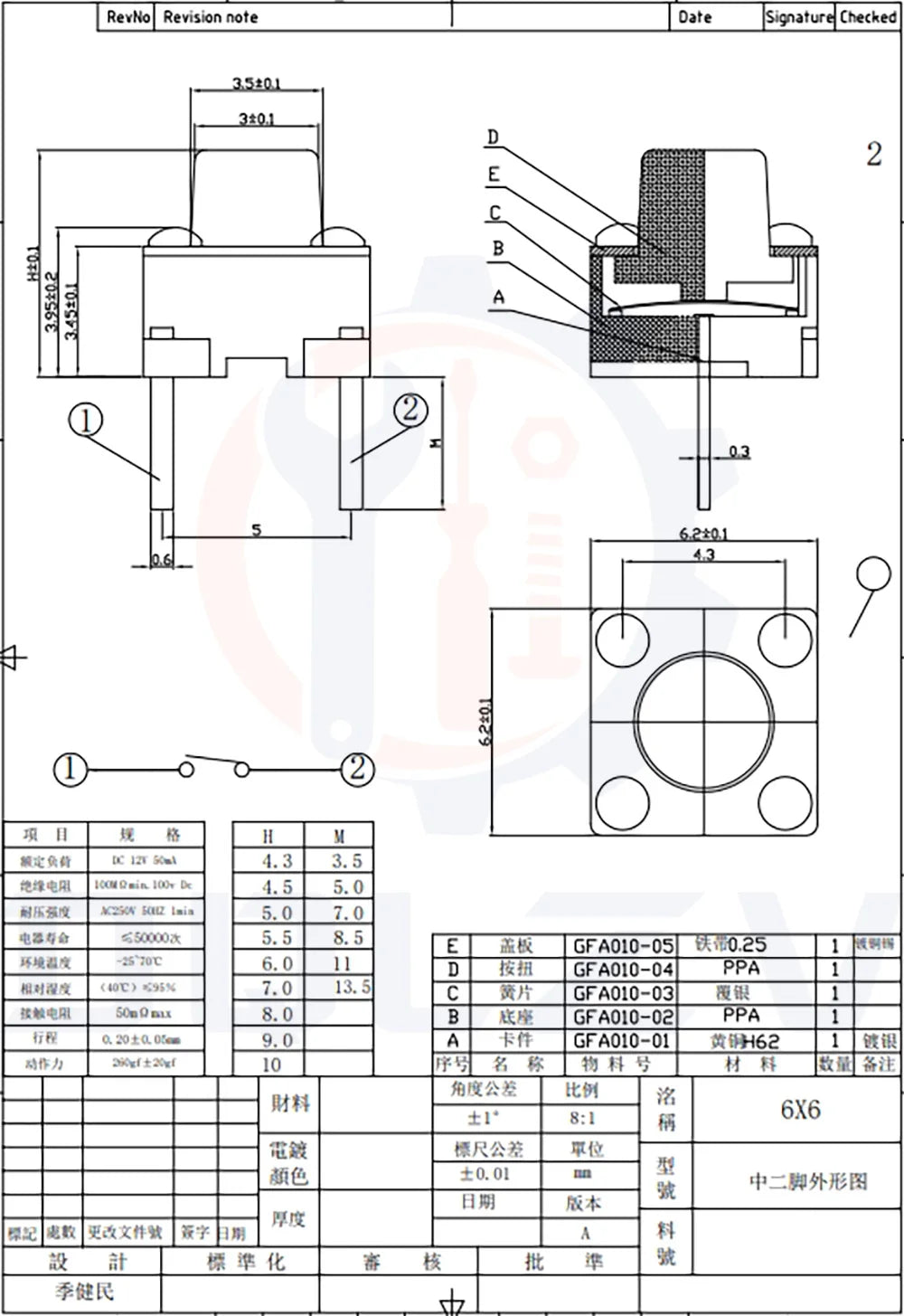

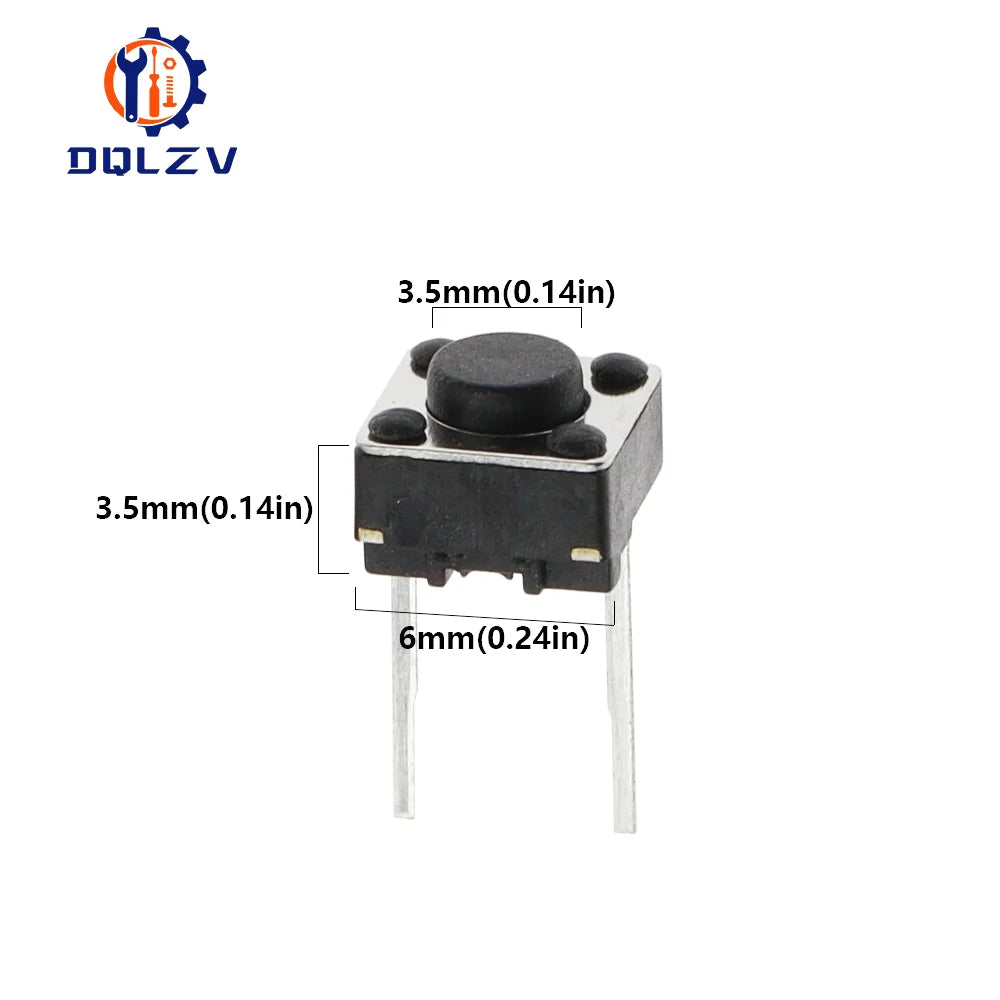

Reference size drawing:
Note (Remark): In the figure below, h represents height and the unit is millimeters.
For example, 6*6*7, that is, the height is 7mm (millimeters)
