Waveshare 2.13inch e-Paper HAT for Raspberry Pi
Waveshare 2.13inch e-Paper HAT for Raspberry Pi
The Waveshare 2.13-inch e-Paper HAT is an ultra-low-power display module designed for Raspberry Pi projects. It retains displayed content even when power is removed, making it ideal for always-visible information displays.
Key Features:
- 2.13-inch E-Ink display
- Direct Raspberry Pi GPIO connectivity
- Ultra-low power consumption
- Image retention without power
- High-contrast text rendering
- Ideal for static information displays
What's in the Box:
- 1x 2.13-inch e-Paper HAT
Best suited for: Digital labels, smart home dashboards, weather displays, and battery-powered information systems.
Do not include Raspberry Pi
Overview

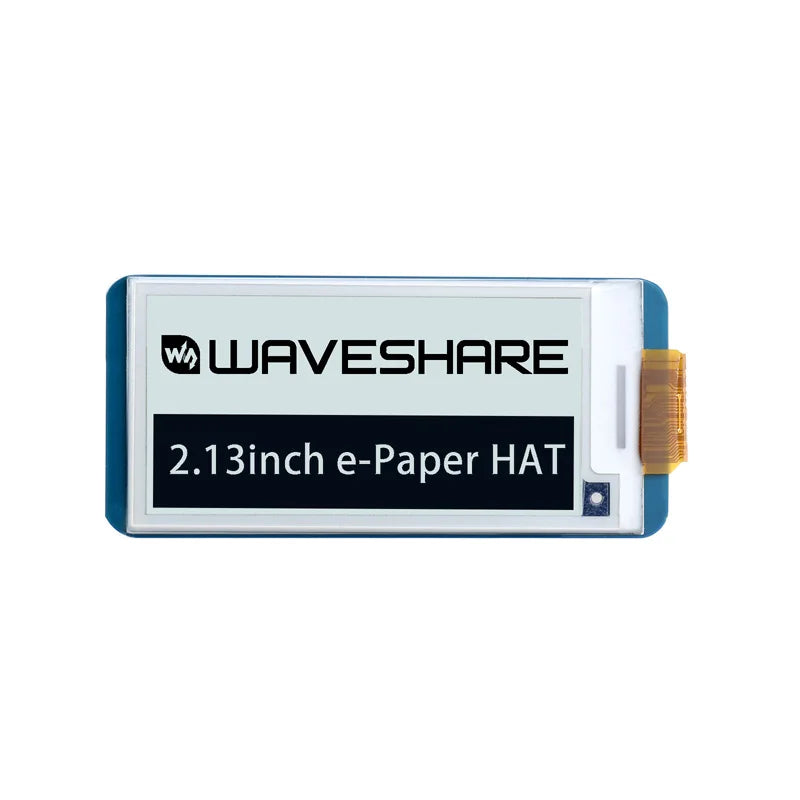

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

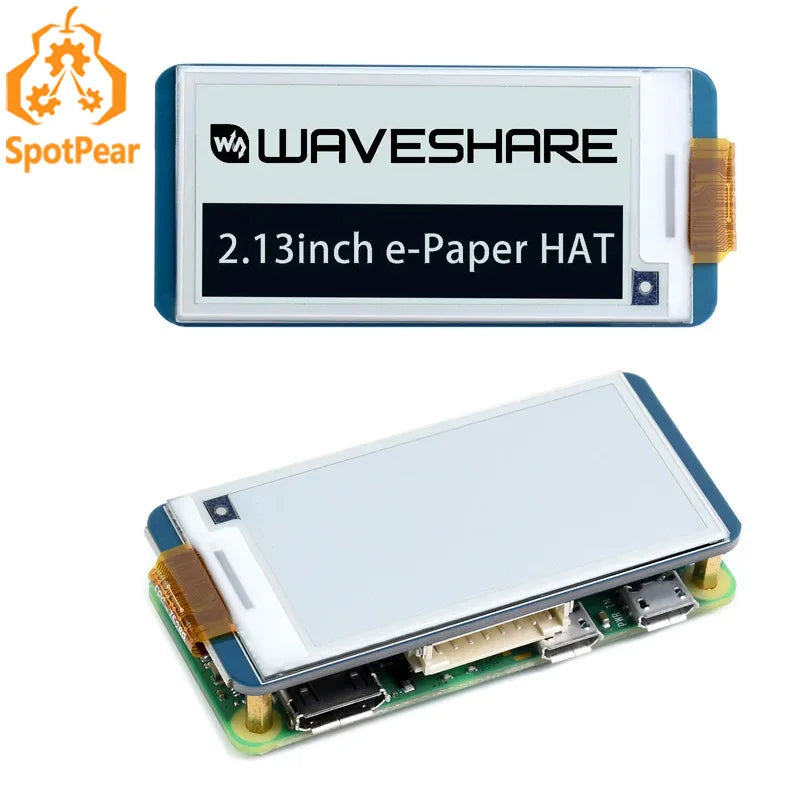

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
Operating voltage: 3.3V/5V
Interface: SPI
Outline dimension: 65mm × 30.2mm
Display size: 23.71mm × 48.55mm
Dot pitch: 0.194 × 0.194
Resolution: 250 × 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

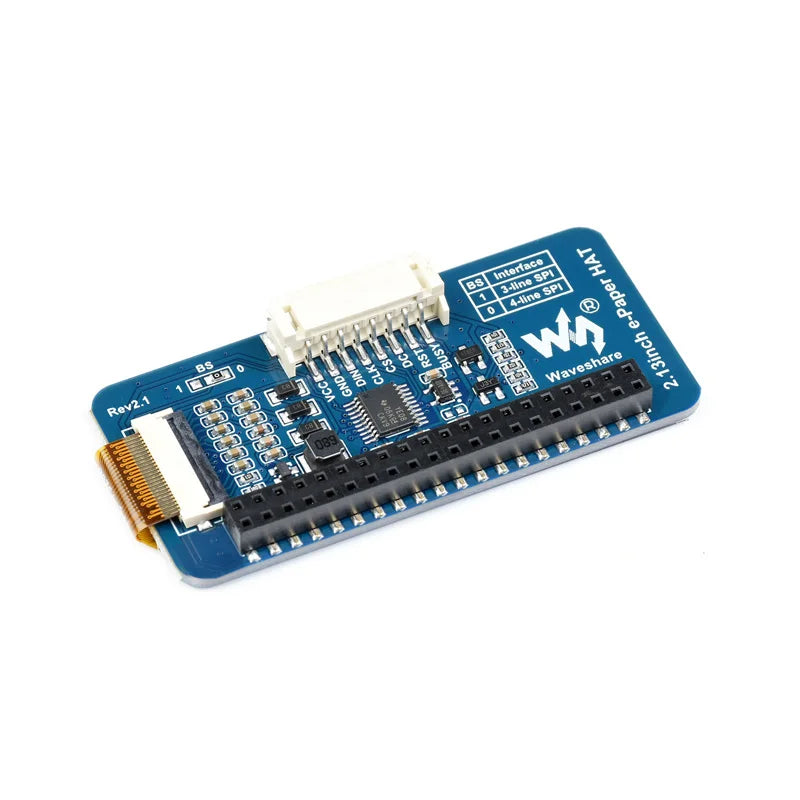

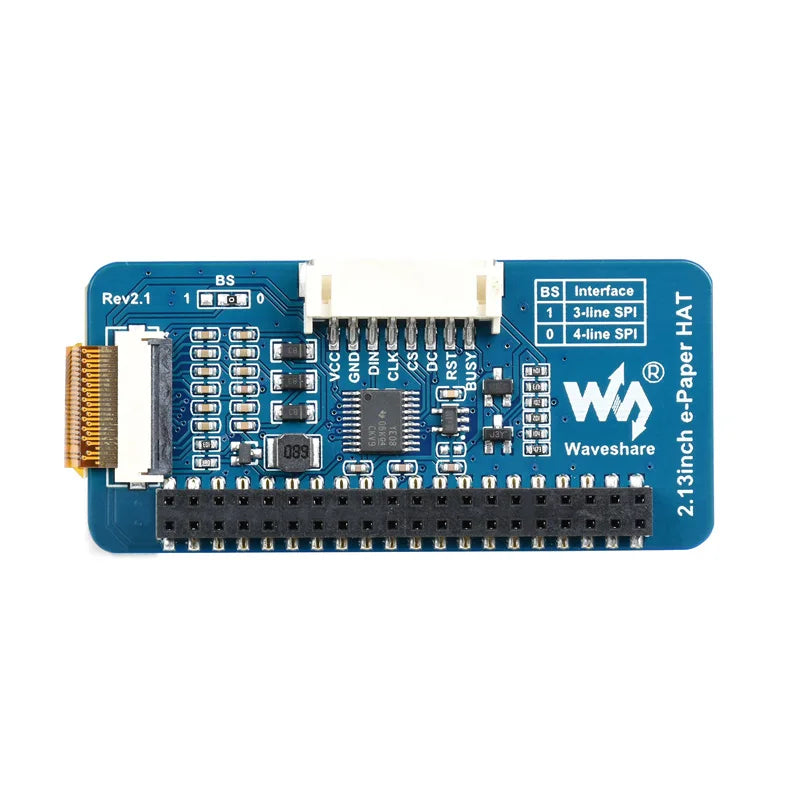

Interface
SYMBOL |
DESCRIPTION |
VCC |
3.3V/5V |
GND |
Ground |
NC |
NC |
DIN |
SPI MOSI pin |
CLK |
SPI SCK pin |
CS |
SPI chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
External reset, low active |
BUSY |
Busy status output, high active |

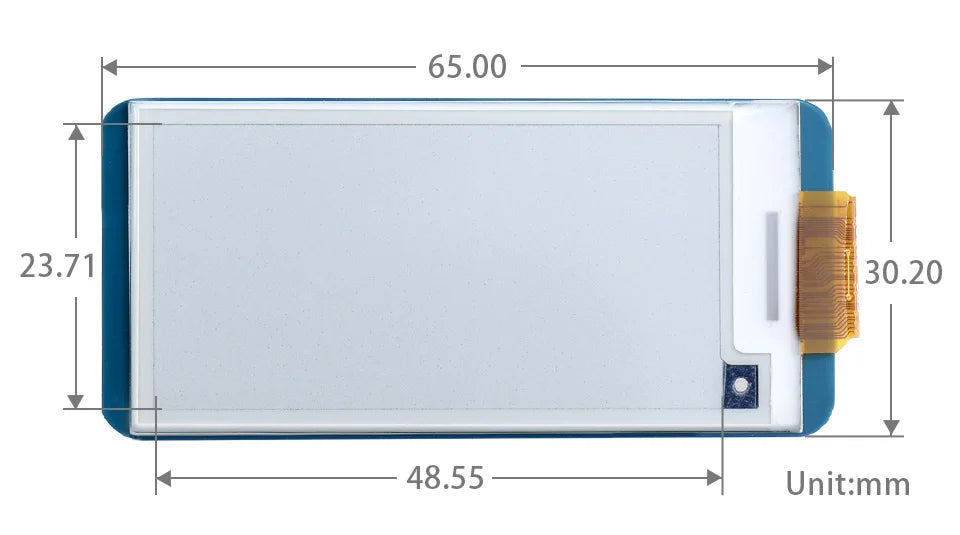

Dimensions

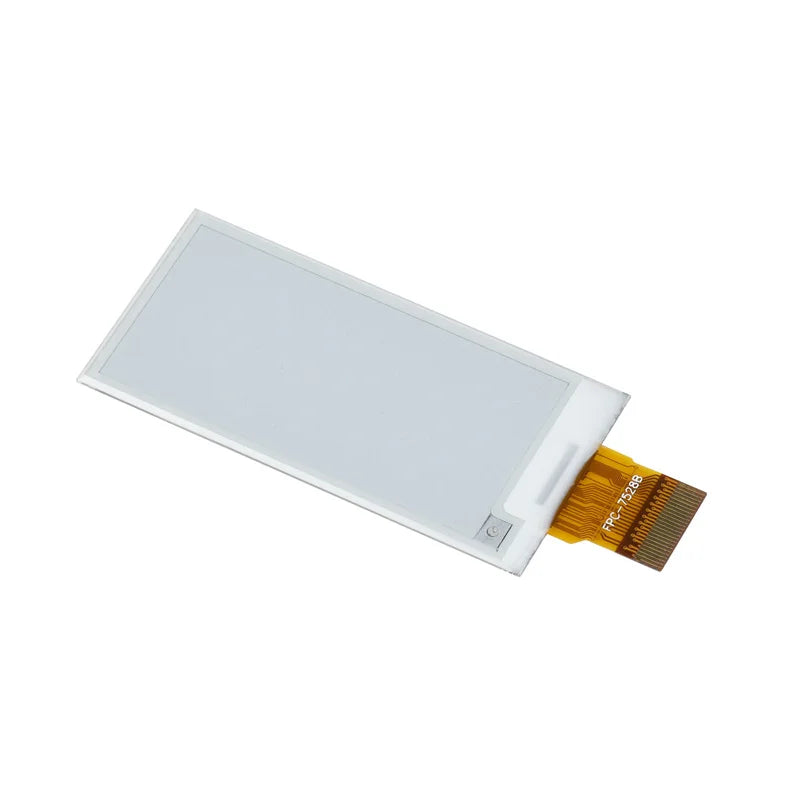

2.13inch e-Paper x1
2.13inch e-Paper HAT x1
RPi screws pack (2pcs) x1
PH2.0 20cm 8Pin x1
